MFH MODULE HEATING (for 300m3)

Form

  • Kit space heater for 300m³ with a airflow of 2,000m³/h. Average consumption of 3.35L/h of fuel and power consumption of 460W.
  • Heating capacity (kCal/h): 32,000 (37kW)
  • Voltage (VAC): 220
  • Fuel: diesel
  • Weight (kG): 157.4
  • Volume (dm³): 1470

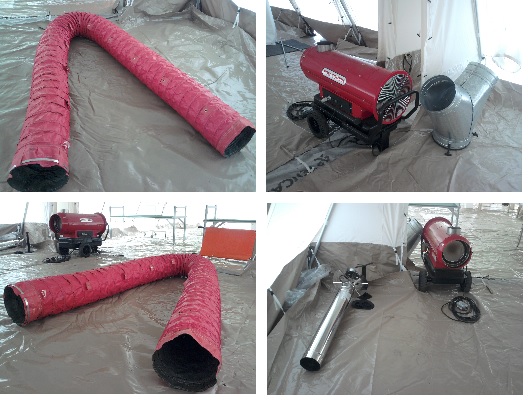

  • The set consists of the following elements :
    • 1 wooden box Docmatic (1200x800x750mm),
    • 1 heater blower (220V, diesel, mobile, 37kW),
    • 1 output Y shape for 2 ducts 300mm,
    • 1 thermostatic control,
    • 2 mounting straps sheath,
    • 1 exhaust chimney cap,
    • 1 flue pipe [m] ,
    • 2 hot air ducts pierced at their end (6mx320mm),
    • 1 deflector for the protection of the electrical panel,
    • 1 preheating/heater filter.

Fit

The system is suitable for demanding applications like construction, agriculture, and large outdoor structures.

Function

  • The entire heating module maintains a comfortable temperature in the room thanks to thermal regulation.
  • The heat gun is placed outside the room and two 6-meter nozzles are attached to the entrance and exit of the room to ensure high efficiency.
