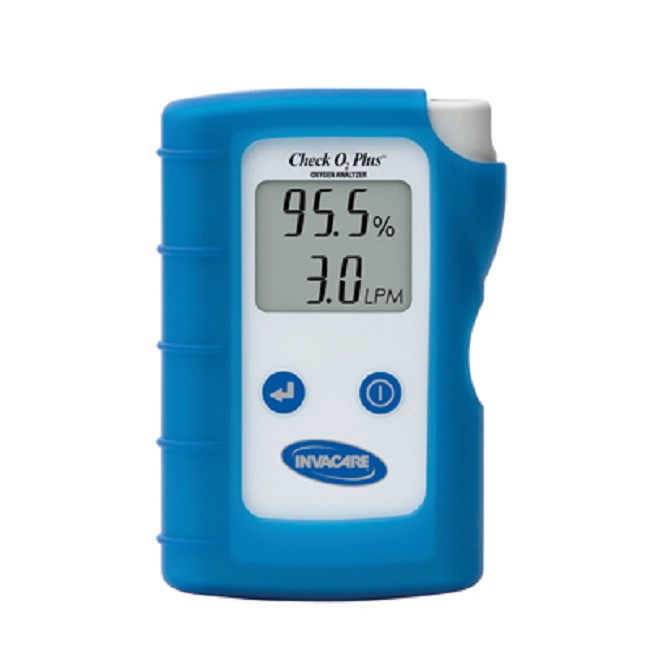

OXYGEN ANALYSER

Definition

The oxygen analyzer measures oxygen concentration and flow at the outlet of an oxygen concentrator using ultrasound technology and measures pressure using a silicon pressure sensor.

Specifications

Some restricted information has been hidden. Sign in to see this information

Quality standards

ISO 80601-2-55, 2018, edition 2, Medical electrical equipment - Part 2-55: Particular requirements for the basic safety and essential performance of respiratory gas monitors

Components

  • Oxygen analyzer

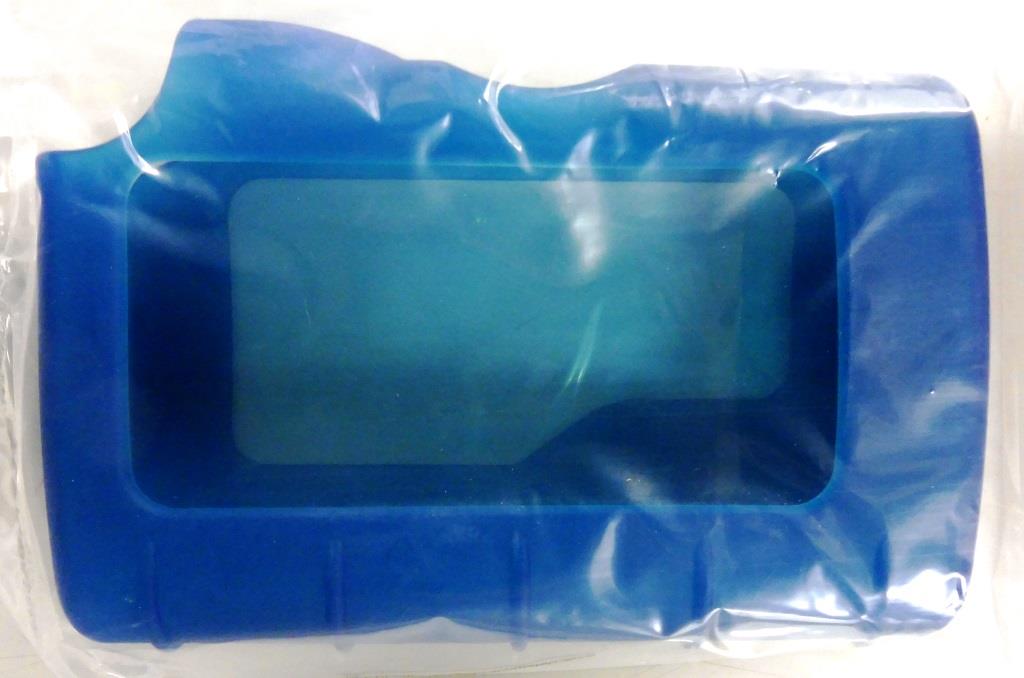

  • Soft cover
  • Tubing
  • 2 batteries AA

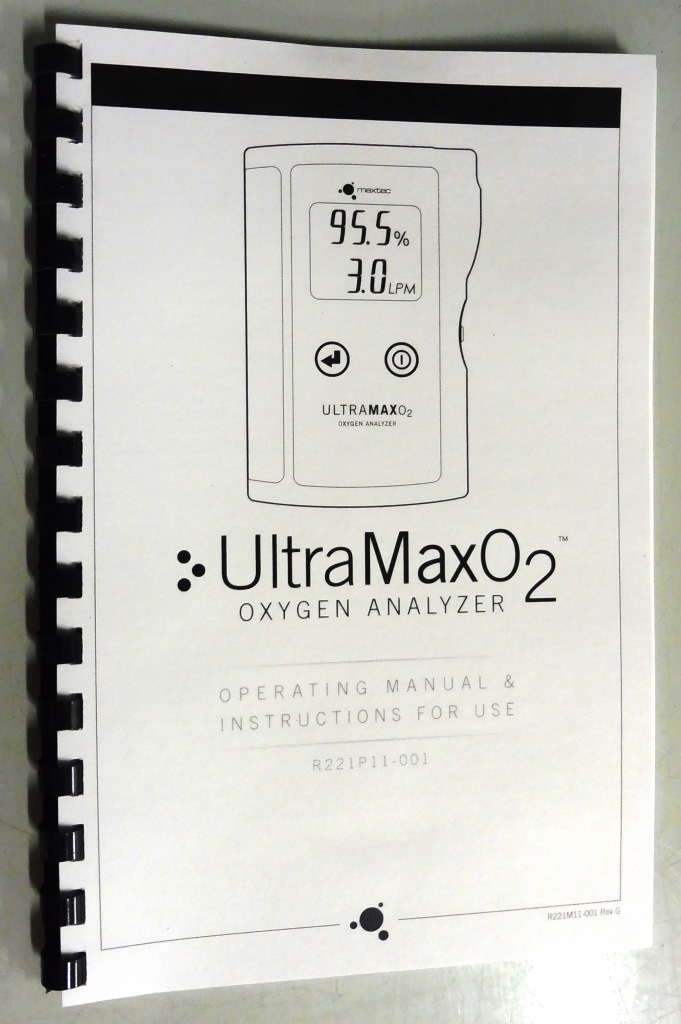

  • 1 manual

Technical specifications

  • From a single connection, the device controls all concentrators from 0 to 10 l/min:
    • Oxygen concentration (%) 21% -95.6% ± 1.5%
    • Flow rate (l/min) 0-10 l/min ± 0.2 l/min
    • The patient output pressure (KPa‌& psi) 0.5-50 PSI ± 0.5%
  • No calibration of the device is necessary, no measuring cell to change
  • Easy to use, 2 buttons only
  • Battery powered: 2 AA batteries (> 16000 readings)
  • The device turns off automatically in order to extend the life of the battery

Dimensions

  • +/- Thickness 2.6 cm; width 8 cm; length 13 cm
  • Weight: +/- 185 g

Packaging & Labelling

Unit package

Supplied with the Article

  • 1 x carry case
  • 1 x set single use batteries
  • 1 x certificate of calibration and inspection to be provided
  • 1 x user / maintenance manual

To be Ordered Separately

Connectors and/or adapters suitable for measurement of various medical gas supply sources, e.g. oxygen concentrators, ventilators/anaesthesia machines and patient circuits (T-piece and/or in-line adapters)

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

  • Do not use the apparatus for continuous oxygen monitoring.
  • Do not use the apparatus to measure the oxygen concentration of a concentrator when flowing at rates lower than its optimal performance as specified by the concentrator manufacturer. Generally 4 LPM or less on concentrators that have a maximum flow of 10 LPM ​, and 1 LPM or less on concentrators that have a maximum flow of 5 LPM
  • Do not autoclave or expose the apparatus to high temperatures (>60°C).
  • Not for use in anaesthesia applications or for measuring oxygen concentration from any sources other than conventional oxygen concentrators.
  • Not suitable for use in the presence of flammable anaesthetic mixtures. Danger of fire or explosion!
  • Do not use rechargeable batteries.
  • Do not use the apparatus ​to check a concentrator with a humidifier in place. Humidity from a humidifier could damage the device.

MSF requirements

Essential tool for the control and maintenance of an oxygen concentrator, providing fast and accurate information on its performance and good operation.
