RETRACTOR, ABD., COLLIN, 110 mm spread 24-50-31

https://unicat.msf.org/cat/product/14206
STD ESURREAC3V1

Valid Article

CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
L03140199 - Spreaders and retractors for general surgery, reusable - other
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

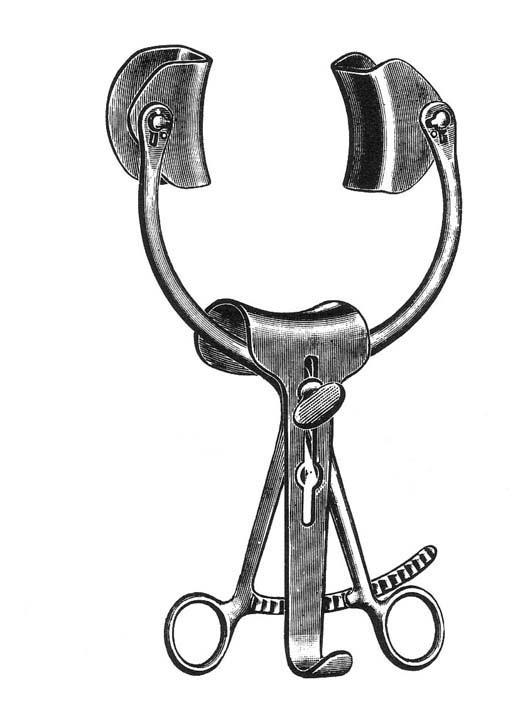

Abdominal retractor, Collin

Definition

A self-locking, surgical instrument used to separate the margins of an abdominal incision typically during deep or extensive surgery, to expose or access organs for examination or intervention. The instrument may resemble a very large pair of scissors, or have a frame-like design with two opposing, blunt-edged, wide-angle blades, that may curve acutely to create a saddle-shaped hook that hold the abdomen open. It has an additional third blade that is tensioned using a series of eyeholes or notches.

Specifications

Technical specifications

  • Abdominal self-retaining retractor
  • 3 parts:
    • 1 frame (24.50.36)
    • 2 lateral blades (24.52.39)
    • 1 central blade (24.53.40)
  • Progressive setting and locking of the ratchet
  • Mobile lateral blades: 80 x 38 mm
  • Dismountable central blade: 65 x 55 mm
  • Maximum spread: 110 mm
  • Total length: 23.5 cm
  • Material: retractor = martensitic steel, blades = austenitic steel

Instructions for use

Make sure the ratchet can be progressively set and the screw tightens properly.

MSF requirements

Used to retract skin, fatty tissues and muscles after the abdominal incision to expose the operative field.

Replaced by the abdominal retractor of Gosset with central blade in the abdominal box.
