VACUUM EXTRACTOR, obstetrical, hand-op., 40-50-60 mm + PARTS
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

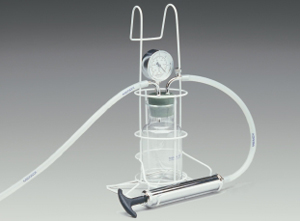

Obstetrical vacuum extractor (Medela)
Definition
An assembly of hand-operated devices designed to facilitate the delivery of a foetus during vaginal childbirth by enabling traction to be applied to the foetal head by means of a suction cup that is attached to the scalp. It typically consists of a cup with a soft inner liner to prevent tissue damage, a hand-operated pump, and a handle used to apply traction. It is typically used for dystocia, uterine inertia, maternal exhaustion, maternal/foetal distress.
Specifications
See table 1 below
Technical specifications
Hand-operated obstetrical vacuum extractor composed of:
- 3 stainless steel anterior suction cups (Bird)
- diameter: 40, 50 and 60 mm
- with separate suction and traction port
- with traction chain
- autoclavable
- 10 bottom plates in polypropylene for each size of metal suction cup
- 2 anterior silicone suction cups (Silc cup®)
- autoclavable
- diameter: 50 mm (blue) and 60 mm (yellow)
- provided with handle and 150 cm silicone tube
- 1 hand-operated aspiration device including:
- 1 manual aspiration pump
- 1 polypropylene collecting bottle 500 ml with manometric cap + 1 spare bottle
- 1 manometer
- 1 plastic covered basket for the bottle
- silicone aspiration tube for connecting the bottle to the cup, internal Ø 6.5 mm: 1.5 m and 3 m extra
- 5 locking rings for tubing
- 1 spare gasket
- 2 stainless steel traction handles with hook to attach to the suction cup.
Supplied with the Article
See table 2 below
Instructions for use
Read the manufacturer's instructions before use!
MSF recommends to use the manual obstetrical vacuum extractor "Kiwi OmniCup®", tested in the field, since it is easier to use (see related articles).
The "modified vacuum extractor by Bird" is stronger and more indicated for difficult deliveries, but it requires the presence of an assistant.
All the components can be sterilized by steam.
Extra Tables
| Nr | MSF code | Label | Ref Medela |
| 1 | ESURVENT1S1 | Plastic vacuum bottle x 2 Flacon plastique pour vacuum x 2 | 077.0039 |
| 2 | ESURVENT1S3 | Silicone plug with 3 holes Bouchon silicone avec 3 trous | 077.0040 |
| 3 | ESURVENT1S9 | Connector, angled, for plug Connecteur, coudé, pour bouchon | 077.0041 |
| 4 | ESURVENT1S13 | Connector with screw valve, complete Connecteur avec valve à vis, complet | 077.0042 |
| 5 | ESURVENT1S6 | Vacuum-gauge with straight connector Manomètreavecemboutdroit | 077.0045 |
| 6 | ESURVENT1S14 | Plastic covered basket for bottle Panier plastifié pour le flacon | 077.0046 |
| 7 | ESURVENT1S7 | Vacuum pump Pompe d’aspiration | 077.0047 |
| 8 | Silicone tubing, 50 cm long, for pump Tube silicone de 50 cm, pour pompe | 077.0054 | |
| 9 | Silicone tubing, 120 cm long, for Malmström model Tube silicone 120 cm, pour le model Malmström | 077.0055 | |
| ESURVENT1S2 | TUBING, silicone rubber, per meter TUBE, caoutchouc siliconé, le mètre | 077.0052 |
| MSF code | Label | ref Medela | Qty |
| ESURVENT1S1 | BOTTLE, polypropylene, 500 ml FLACON, polypropylène, 500 ml | 077.0039 | 2 |
| ESURVENT1S3 | PLUG, blue rubber, with 3 holes BOUCHON, caoutchouc bleu, avec 3 trous | 077.0040 | 1 |
| ESURVENT1S9 | CONNECTOR, angled, for plug RACCORD coudé, pour bouchon | 077.0041 | 1 |
| ESURVENT1S13 | CONNECTOR, angled, with screw valve, complete CONNECTEUR, avec valve à vis, complet | 077.0042 | 1 |
| ESURVENT1S4 | GASKET, for connector with screw cap JOINT de valve embout coudé | 077.0044 | 2 |
| ESURVENT1S6 | VACUUM GAUGE, with straight connector MANOMETRE, avec embout droit | 077.0045 | 1 |
| ESURVENT1S14 | BASKET, plastic, for bottle PANIER, plastifié, pour flacon 077.0046 | 077.0046 | 1 |
| ESURVENT1S5 | VACUUM PUMP POMPE D'ASPIRATION | 077.0047 | 1 |
| ESURVENT1S7 | VALVE MEMBRANE, silicone rubber, for pump MEMBRANE VALVE, caoutch. siliconé, pr pompe | 077.0048 | 1 |
| ESURVENT1S2 | TUBING, silicone rubber, per meter TUBE, caoutchouc siliconé, le mètre | 077.0052 | 25 |
| ESURVENT1S16 | LOCKING RING, for tubing RONDELLE DE VERROUILLAGE, pr tube | 077.0062 | 5 |
| ESURVENTCS5 | SUCTION CUP Silc Cup®, 50 mm, complete CUPULE Silc Cup®, 50 mm, complète | 077.0761 | 1 |
| ESURVENTCS6 | SUCTION CUP Silc Cup®, 60 mm, complete CUPULE Silc Cup®, 60 mm, complète | 077.0762 | 1 |
| ESURVENT1C4 | SUCTION CUP Bird nº 4, 40 mm, complete (with tubing) CUPULE de Bird nº 4, 40 mm, complète (avec tube) | 077.1041 | 1 |
| ESURVENT1C5 | SUCTION CUP Bird nº 5, 50 mm, complete (with tubing) CUPULE de Bird nº 5, 50 mm, complète (avec tube) | 077.1042 | 1 |
| ESURVENT1C6 | SUCTION CUP Bird nº 6, 60 mm, complete (with tubing) CUPULE de Bird nº 6, 60 mm, complète (avec tube) | 077.1043 | 1 |
| ESURVENT1S15 | TRACTION HANDLE, with hook POIGNEE DE TRACTION, avec crochet | 077.1044 | 2 |
| ESURVENT1S10 | BOTTOM PLATE Bird suction cup 40mm PLAQUE de FOND, cupule Bird 40 mm | 077.1045 | 10 |
| ESURVENT1S11 | BOTTOM PLATE Bird suction cup 50mm PLAQUE de FOND, cupule Bird 50 mm | 077.1046 | 10 |
| ESURVENT1S12 | BOTTOM PLATE Bird suction cup 60mm PLAQUE de FOND, cupule Bird 60 mm | 077.1047 | 10 |
| / | EXTRA SILICONE TUBING 3 m TUBE SILICONE EXTRA 3 m | 077.0164 | 1 |
| / | SILICONE TUBING 50 cm TUBE SILICONE 50 cm | 077.0054 | 1 |
| / | SILICONE TUBING 150 cm TUBE SILICONE 150 cm | 077.0056 | 1 |
