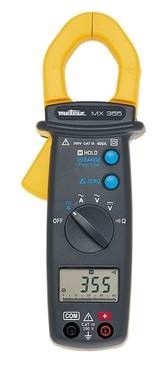

MULTIMETER, with current clamp

Definition

Device for measuring AC and DC voltage, amperage, resistance and frequency.

Specifications

  • Digital display
  • DC voltage range: 0 - 100 V, resolution 10 mV, accuracy ± 1%
  • AC voltage range: 0 - 500 V
  • DC and AC amperage range: 0 - 400 A, accuracy ± 3%
  • Frequency range: 0 - 500 Hz
  • "True RMS" for greater accuracy
  • Supplied with battery

Instructions for use

Essential for working on an electrical installation.

The current clamp is used to measure the current in a conductor (e.g. the charge current from a charger) or the discharge current from a backup system.

Only one wire should be measured at a time (with 2 wires the result is always zero)!

Reset the ammeter before each use.

The frequency meter can be used to check a generator's rpm.

To interpret your results, refer to the MSF guidelines on energy.
