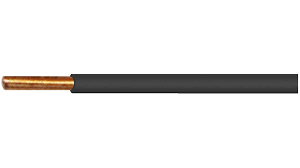

WIRE rigid, copper, 1.5mm², black, per metre
STD
PELECABW01RB
Valid Article
Account code:
61220
Last Updated on:
22/11/2024, 22:59:01
Former
Code(s):
PELECABL1RB PELEZNL0146
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
WIRE rigid, copper, 1.5mm², black, per metre
Form
Copper cable, PVC sheath, solid 1 x 1.5mm² black, 230/450 volts rated, 10 amps, 70ºC max.
Per metre.
Fit
Compatible with junction boxes and terminals. Can be grouped in conduits, raceways, panels and control boxes where multiple conductors are required
Function
An electrical cable, an assembly of one or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power.
See also: MSF – ICRC Electrical Installations and Equipment in the Field: Rules and Tools. Latest Rev: 6.1.2. CABLES: GETTING THE RIGHT CABLE FOR THE RIGHT USE.
