(high press cleaner 1.7kW) HYDROPHORE PUMP + 7m suction hose
NST
PTOOCLEA12PH
Valid Article
Account code:
61100
Last Updated on:
21/11/2024, 23:04:20
Former
Code(s):
PTOOZNL0004 PTOO004
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
(high press cleaner 1.7kW) HYDROPHORE PUMP + 7m suction hose
Form

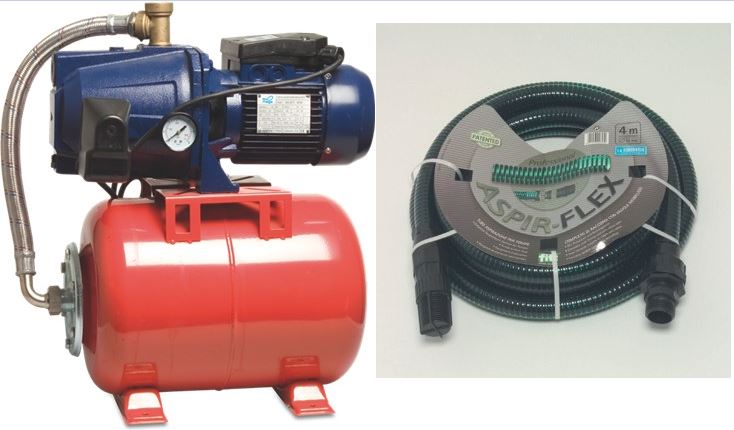

Consists of a hydrophore, 7m 1" hose, couplings and a foot valve.
Minimal specifications hydrophore:
- Power: 700 W
- Minimal - max. capacity : 40 l/min
- Minimal - max. delivery height: 40 mtr
- Minimal - max. suction height: 8 mtr
- Connection: 1" female thread
- Tank size: 20 ltr
- Pressure 35 - 10 mWc
- Manometer, pressure switch etc.
- 230V
A good example is the JPB HYDRO-S Pressure set 0930166.
Fit
Use with PTOOCLEA12- HIGH PRESSURE CLEANER, 1.7kW, 120bar, 380-440l/h, 230V
Function
A hydrophore is a pressure installation which is used to keep the water piping at the correct pressure. This way the pressure of the piping is automatically and fully controlled. A membrane inflated with air in the tank regulates the water pressure.
