CONNECTION SADDLE 90° to glue, PVC, Ø 80-40 mm, exhaust
NST
CWATCVELS984S
Valid Article
Account code:
61010
HS Code:
391740
Last Updated on:
22/11/2024, 23:08:13
Former
Code(s):
CWATZBD0323
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

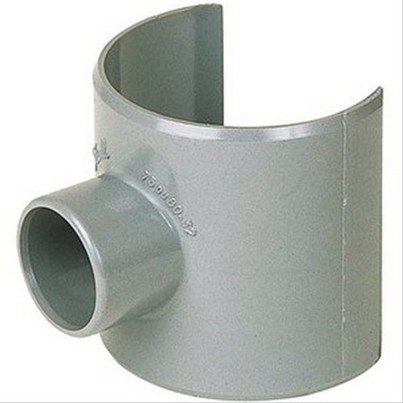

CONNECTION SADDLE 90° to glue, PVC, Ø 80-40 mm, exhaust
Form
PVC connection, in a horse saddle shape, 80 mm diameter, with a smooth 40 mm connection on the side. Per piece.
Fit
Saddle is connected to a 80 mm external diameter PVC pipe. The smooth coupling connects to a 40 mm external diameter PVC pipe. To be glued with PVC glue.
Function
Used to join two PVC pipes of different diameters.
40mm PVC is often used for grey water drainage, sinks or washing machines. The saddle coupling could be used for example to connect the drainage of a sink to a larger grey water exhaust line.
- To install the connection saddle, you need to drill a 40 mm hole in the 80 mm pipe.
- PVC pipes can be cut with a metal saw.
- Grind the cut with a file or sandpaper.
- Grind with sandpaper the parts that need to be glued, on the tube and inside the sleeve.
