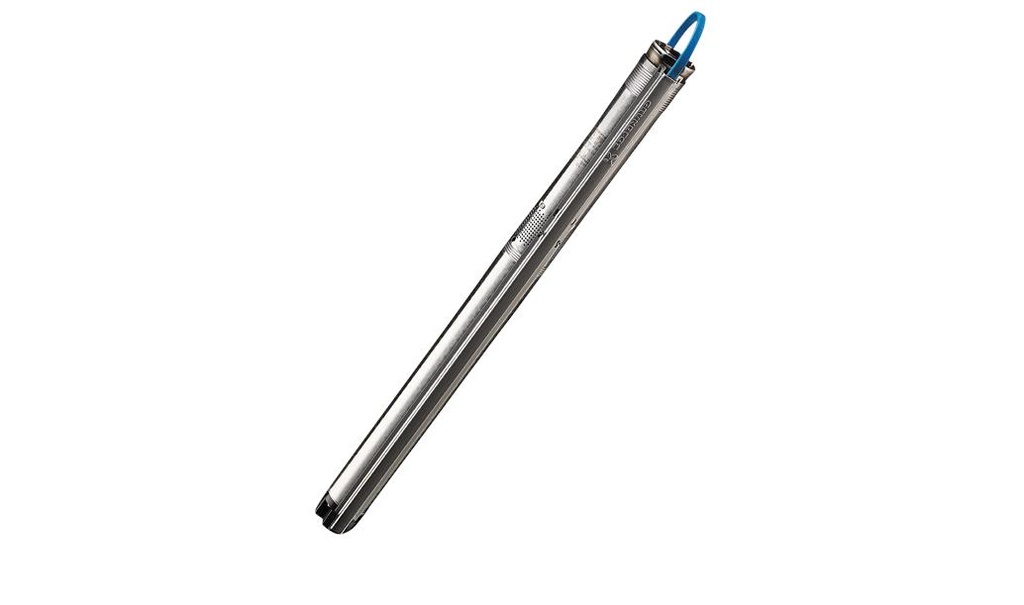

SUBMERSIBLE PUMP (Grundfos SQ3-55) 230V

Form

Submerged centrifugal pump, powered by an electrical motor, both integrated within a metallic cylinder with a filter part in the middle and with a waterproof electrical system. Pump diameter: 74 mm. Closed article: Grundfos SQ 3-55. Per piece.

Specifications:

  • Engine:
    • Electric, single phase, 230 VAC, 50 Hz
    • Slow starting (runs on the 3-4 kVA generator when new)
    • Over- and under voltage protection
    • Dry run protection
  • Equipped with non-return valve
  • Rated pump performance H =55 m, Q = 3 m3 / h

    Fit

    The outlet has a female threaded 1"1/4 connection.

    Needs electrical supply, single phase 230 V (network or generator).

    Internal diameter of the borehole: Minimum 76 mm.


    Function

    Used to extract water from deep wells, or from closed wells. Little maintenance required. Pump has to be completely submerged in water to function properly.

    See 'Public health engineering in precarious situations' T.B. 2.25 T.B. 2.26 T.B. 2.29
