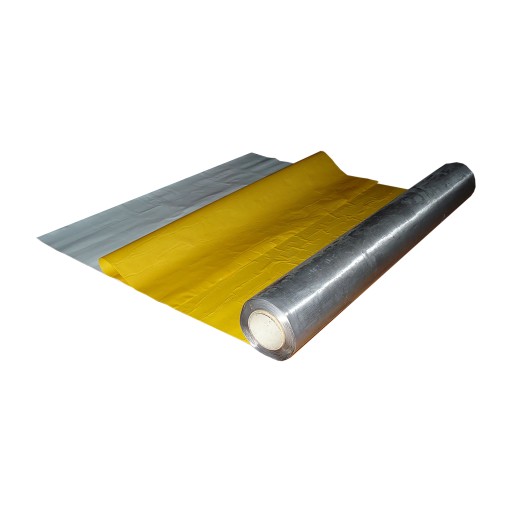

LEAD SHEET, lacquered, self-adhesive, 1mm thick, 5mx1m
STD
EDIMRPSH2SA
Valid Article
HS Code:
901890
Last Updated on:
21/11/2024, 23:13:28
Former
Code(s):
EDIMZFR0019 EDIMRPSH1SA EDIMRPSHH1SA
T030402 - Radiotherapy protection sheaths
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
RADIO PROTECTION LEAD SHEETING, self-adhesive
Definition
Rolled sheet lead is used to line the walls of an x-ray room to ensure safety and compliance with international radiation safety standards.
The lead sheets are coated and thus avoid direct contact with lead. The coating with a self-adhesive film facilitates the fixing.
Specifications
Material
Standard sheeting is rolled from 99.5% pure lead or more.
Technical specifications
- Thickness sheet lead: 1.0 mm
- Length: roll of 5 m
- Weight of the roll: 57 kg
- Can be easily cut with a regular cutter.
Instructions for use
To be applied to walls to all four walls and the door of an x-ray room to the height of 2 meters, with an overlap of 10 mm at all seams.
MSF requirements
The lead layer is 1mm thick which is now the new standard for MSF.
For further information regarding radiation protection requirements please contact the Diagnostic Imaging Working Group (diagnostic-network@msf.org).
