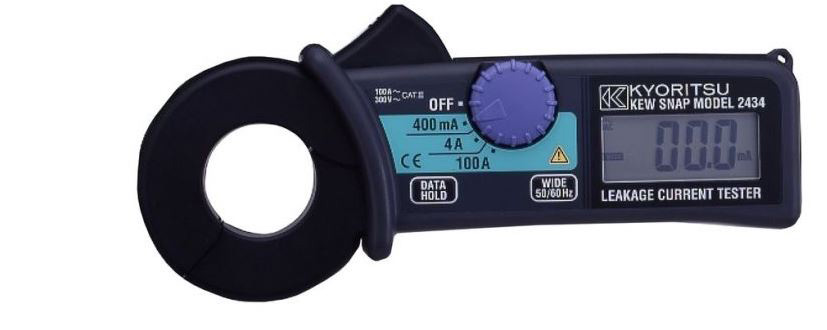

CLAMP METER leakage current , 0.1-100A, digital

Form

Leakage clamp meter for AC leakage and load current measurement, designed for industrial and commercial electrical diagnostics. Features high sensitivity, filtering for inverter circuits, and a compact jaw for conductors up to 28 mm.

  • measuring ranges: 0–399.9 mA, 0–3.999 A, 0–100 A AC

  • accuracy: ±2.0 %rdg ±4 dgt (400 mA), ±3.0 %rdg ±5 dgt (4 A), typical for 100 A range

  • power supply: 2 × 1.5 V batteries (R03 / LR03)

  • conductor size: up to 28 mm diameter

  • protection: double insulation, CAT III 300 V, pollution degree 2, IP not specified (handheld)

  • dimensions: 169 × 75 × 40 mm

  • weight: 220 g (including batteries)

Includes:

  • 1 × clamp meter model 2434

  • 2 × LR03 batteries

  • 1 × carrying case (model 9097)

  • 1 × instruction manual

Per piece.

Fit

Interfaces and connections:

  • clamp-on measurement via transformer jaws (AC only)

  • range selector switch: 400 mA / 4 A / 100 A / OFF

  • frequency selector

  • data hold button for freezing readings

  • LCD with indicators (OL, BATT, hold, frequency mode)

Operating conditions:

  • operating temperature: 0 to 40 °C, ≤85 % RH (non-condensing)

  • storage temperature: –20 to +60 °C

  • indoor use, altitude < 2 000 m

  • sleep function after ~10 minutes

Overload and protections:

  • overload protection: 120 Arms for 10 seconds

  • withstand voltage: 3 470 V rms between jaws and housing

  • insulation resistance: ≥10 MΩ at 1 000 V

Function

Used to measure AC leakage current, earth leakage, and load current in electrical installations, helping diagnose insulation deterioration, unwanted leakage paths, or load imbalance. Suitable for maintenance tasks, inverter-based equipment, and general electrical troubleshooting.

Usage: select the appropriate range, clamp the jaw around the target conductor(s) according to measurement type, and read the value on the display. Filtering mode (50/60 Hz) may be activated to suppress high-frequency noise.

Specific use:

  • detection of leakage currents causing nuisance tripping

  • comparison between WIDE and 50/60 Hz modes to isolate harmonic or inverter-induced leakage

  • measurement in tight spaces requiring small-jaw access

Limitations: AC only; not suitable for voltages above CAT III 300 V; accuracy impacted near strong magnetic fields; conductor must fit fully within the jaws for correct measurement.

Use precautions:

  • inspect the jaws for damage or debris before use

  • keep fingers behind the barrier during measurement

  • avoid measuring near strong magnetic fields when possible

  • ensure jaws fully close around the conductor

  • set to OFF after use to preserve battery life
