SUBMERSIBLE PUMP (Grundfos SQ3-105) 230V
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

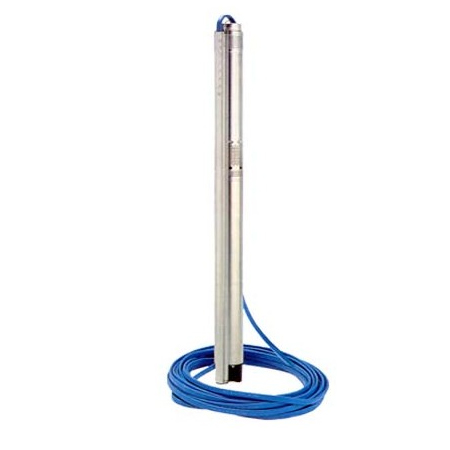

SUBMERSIBLE PUMP (Grundfos SQ3-105) 230V
Form
Submersible pump of corrosion-resistant stainless steel, 3” in diameter. Supplied with 110 m cable with a minimum 6 mm² section and CEE plug mounted. The manufacturer's warranty is also applicable on the power cable.
- Maximum pumping height (m): 106
- Pump outlet connection: Rp1 1/4"
- Max. (m³/h): 6
- Voltage (V AC): 1 x 200-240 V, 50/60 Hz
- Power (kW): 2.23
Size:
- Diameter (mm): 74
- Height (mm): 943
- Weight (kg): 42 (wire included)
- Volume (dm³): 118.8
Fit
The SQ is a compact, 3" multistage centrifugal pump that can be installed in a borehole no larger than the pump itself. With their built-in electronics, SQ pumps are very easy to install and operate. They guarantee a reliable water supply at all times.
Equipped with permanent magnet motors, these flexible and compact pumps offer excellent efficiency levels and will supply pump heads up to 200 m.
Function
This pump can operate in continuous or intermittent mode for domestic water supply, small distribution networks, irrigation or water tanks.
