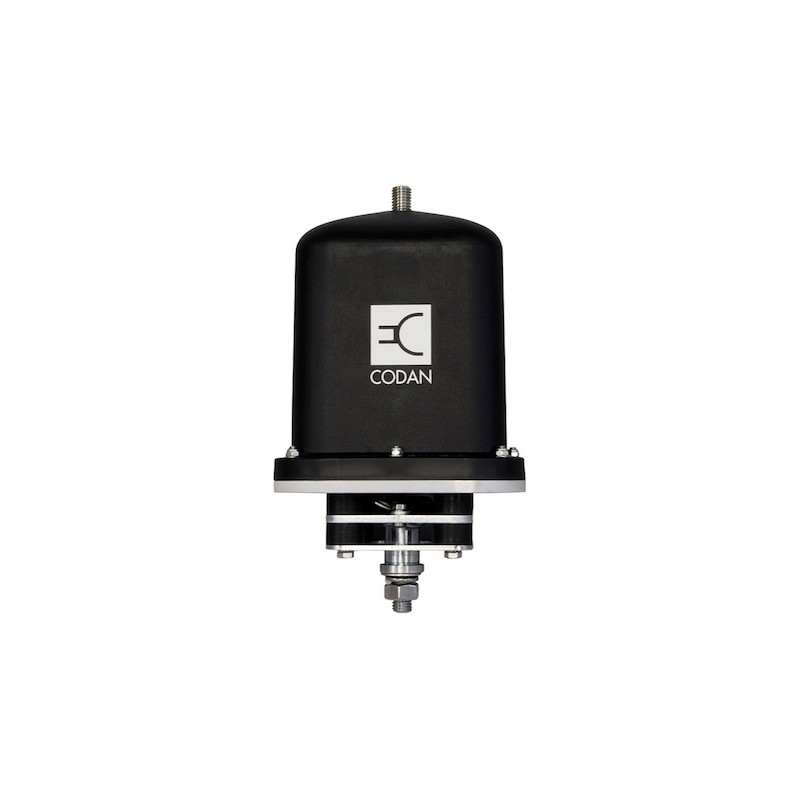

HF TUNER (Codan 3040) w/o whip/spring
STD
PCOMRHFAC30AT
Valid Article
Account code:
61160
HS Code:
854420
Last Updated on:
11/12/2024, 19:59:19
Former
Code(s):
PCOMZFR0121
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
HF TUNER (Codan 3040) w/o whip/spring
Definition
Omnidirectional HF antenna/tuner, wide-band, with active tuning, for mobile use.
Specifications
- Automatic tuner
- Fibreglass whip antenna + bottom raiser +3dB part
- Heavy duty spring
- Impedance: 50 ohms
- Frequency range: 2.5 - 30 MHz
- Length: 2.2 m, fixed
- To be used with Codan radios Envoy X1 only
- Integral Active Wideband Receiver Amplifier for scanning
Some restricted information has been hidden. Sign in
to see this information
Instructions for use
Before installing the antenna, the radio must be turned off and the power cable must be disconnected.
Caution: the fibreglass whip antenna is flexible but fragile. Remember to unmount it before entering woodland to prevent it from getting broken by branches.
The antenna should be installed at the front of the vehicle where it is visible to the driver, between the bonnet and the bull-bar in order to be protected in case of collision. The connectors should be directed towards the rear of the vehicle and protected with vulcanizing tape.
Some restricted information has been hidden. Sign in
to see this information
