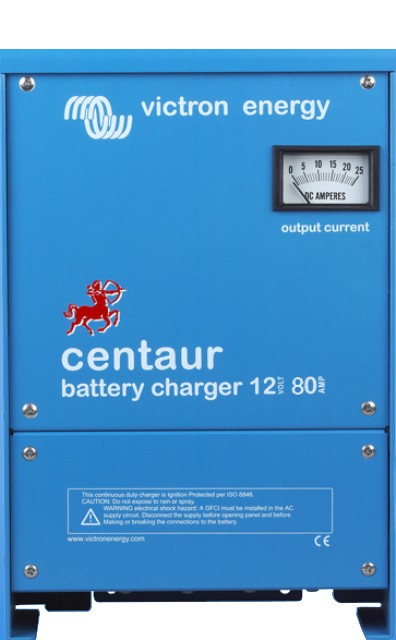

BATTERY CHARGER (Victron centaur 12/80) 12V/80A/in 90-265V
NST
PELECHAR80L1
Valid Article
Account code:
61120
Last Updated on:
22/11/2024, 23:44:12
Former
Code(s):
PELEZNL0448 2
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
BATTERY CHARGER (Victron centaur 12/80) 12V/80A/in 90-265V
Form
Battery charger AC to DC and DC to DC operation.
- input 12 volts DC and/or 230 Volts AC, charging current 80 ampere
- charge voltage absorption (V DC) 14.3 / 28.5
- charge voltage float (V DC) 13.5 / 27.0
- H x W x D: 500 x 255 x 30 mm
- AC connection 4 mm²
- operating temperature range: -20 to +60°C (fan assisted cooling
- humidity (non condensing): max 95%
- dry location only
- weight 12 kg
Closed article: Victron centaur 12/80. Per piece.
Fit
Fit with batteries and Victron accessories.
Function
Three-stage charging, with temperature compensation.
The system charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins.
After the timed period the charger switches to float rate.
An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell.
A DIP switch is available to select the optimum charge/float voltages for flooded lead-acid, gel or AGM batteries.
