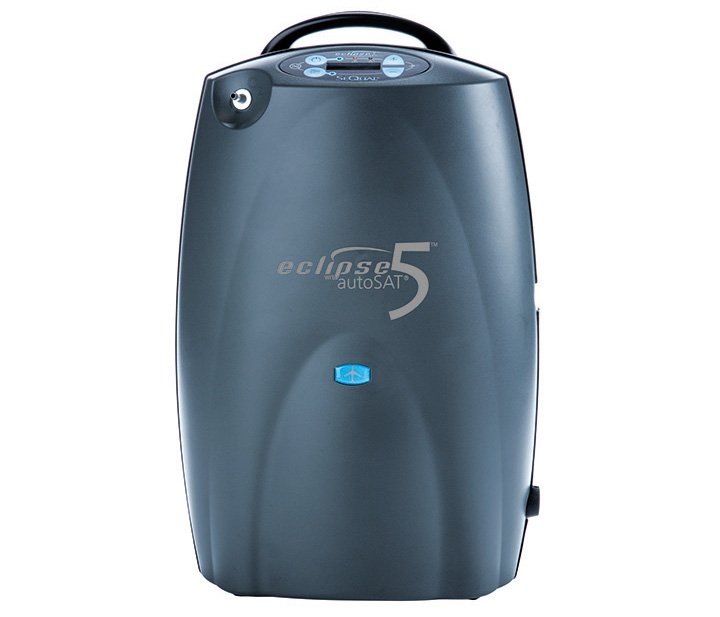

CONCENTRATOR O2, portable, (Eclipse 5) 3l
Replaced by the filling system of oxygen cylinders i-Fill in 2020. The Eclipse 5 is not robust enough for the use in the MSF contexts and designed for use in temperate climates and home use (see “replaced by” at bottom of the page).
The i-Fill system with small oxygen cylinders provides a satisfactory solution for static patient transfer (between services) and ambulance transport.
For some specific situation the Eclipse remains a non-standard second choice option: air ambulance. Contact your biomedical advisor for more information.
Definition
A portable mains electricity (AC-powered) device designed to concentrate oxygen (O2) from ambient air and deliver the concentrated O2, through an attached nasal cannula, to a patient requiring oxygen therapy. It consists of an air compressor, filters, dual chambers, a reservoir and controls. The O2 concentration is variable depending on the flow rate utilized. It has internal batteries for transportable use and is used in a vehicle/ ambulance.
Specifications
Quality standards
Components
Mobile oxygen extractor + handle, 40dB to 48dB 2 filters :
- Cabinet inlet filter for large particles
- Intake filter for fine dust particles and bacteria
Standard connector nozzle at oxygen O2 outflow (9/16)
Technical specifications
- Continuous flow: 0.5 to 3.0 litres/min (0.5 liter increments)
- Pulse flow: 16-96 ml (8 ml increments), 128 ml, 160 ml, 192 ml
- Continuous Flow Accuracy : +/- 10% or 200 ml/min
- Oxygen Concentration : 87–95.6% for all flow settings
- Oxygen Output Pressure : 5.0 psig (34.5 kPa) nominal
- Nominal sound level :
- max continuous flow : 48 dB
- Max pulse flow : 40 dB
- Operating environment:
- temperature between +10° and 40°C
- relative humidity between 10% and 95%
Dimensions
Volume H x W x D: 49.0cm x 31.2cm x 18.0cm
Weight: 6.8 kg + battery 1.5 kg
Transport Dangerous Goods
- UN3481 Lithium ion batteries contained in equipment
- Class: 9
- Packing Instructions: 967 Section II
- The label must include the UN code of the battery + an emergency number to contact in case of an incident
- Limit per package:
- Pax A/C (Passengers & Cargo Aircraft) = 5 kg
- CAO (Cargo Aircraft Only) = 5 kg
Supplied with the Article
- DC car adaptator
- Big wheel trolley
- Battery
- Bag
To be Ordered Separately
Don't forget to order the administration devices in sufficient quantities because they are single patient use!
- oxygen masks for adults and children
- nasal oxygen cannula for adults and children
- nasal oxygen cannula for neo-nates and prematures
- oxygen tubes
See related articles at the end of the technical sheet
Instructions for use
Storage
- Temperature between -20° and 60°C
- Relative humidity: up to 95 % non-condensing
MSF requirements
Item selected in 2015 for ambulance use.
