BENCH VICE swivel-base, 360°, 150mm, 1224.125
STD
PTOOVICES12
Valid Article
Account code:
61100
HS Code:
820600
Last Updated on:
23/11/2024, 00:03:00
Former
Code(s):
F1222.125
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

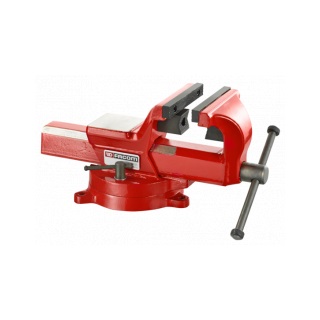

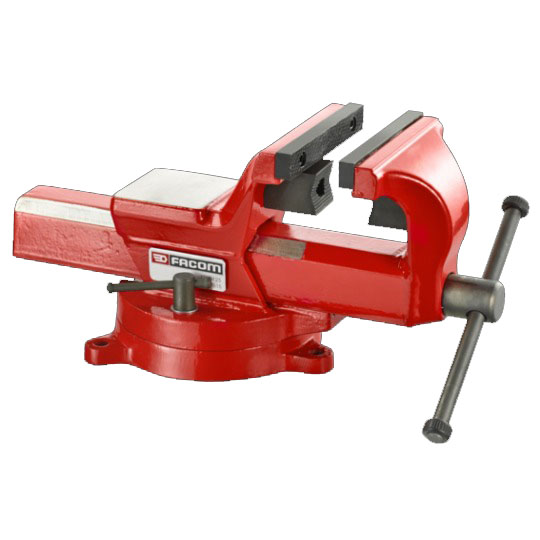

BENCH VICE swivel-base, 360°, 150mm, 1224.125
Form
Cast iron tool for to be fixated on a working bench. As Facom 1224.125. Open article. Per piece.
Fit
• Vices in spheroid graphite cast iron, tensile strength 700 N/mm² minimum.
• Wide bearing base of the prism guide/mobile jaw: lack of guide flexion, vice operation preserved even under heavy loads.
• Interchangeable parallel jaws. High wear resistance, hardness 48/53 HRc.
• Removable V-shaped jaws for tightening the pipes. Hardness 40/46 HRc.
• Adjustment system by 2 complex gap compensation screws.
Function
A mechanical apparatus used to secure an object to allow work to be performed on it. Vices have two parallel jaws, one fixed and the other movable.
