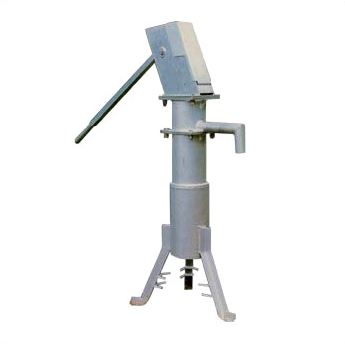

MANUAL PUMP submersible (India MkIII) 15m

STD CWATPUMEHI3

Valid Article

OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist



MANUAL PUMP submersible (India Mark)

Definition

Manually powered pump, used to draw water from wells or bore holes of a depth larger than 7 metres.

The pump raises a column of water through a delivery pipe up to the surface.

The pump is used for clinics, health posts, communities, etc...

Different models of India Mark hand pumps exist - please check the specifications of the pumps before purchasing them to make sure you purchase the correct one.


Specifications

All India Mark pumps are:

  • conventional lever action hand pumps
  • designed for heavy-duty use
  • serving communities of 300 persons (recommendations for the number of persons per pump differ from countries!)
  • VLOM hand pumps (village level operation and maintenance), implying easy local maintenance, local access to spare parts and cost effectiveness, except the India Mark II which is suitable for an extra deep well
  • public domain pump defined by Indian standards and RWSN specifications
  • designed to be operational for at least 1 year without maintenance
  • not corrosion resistant and should not be used in areas with acid water, with pH value < 6.5
  • consists of: a pump head, pump stand and a handle of galvanised steel
  • equipped with the following down hole components: brass lined cast iron cylinder with a foot valve and a plunger of brass with a double nitrile rubber cup seal and pump rods of galvanised steel with threaded connectors

India Mark II, Extra Deep-well pump:

  • depth: 50-80 metre
  • flow rate at 60 m head: 0.45 m3/hour
  • flow rate at 80 m head: 0.35m3/hour
  • this pump is NOT considered a VLOM pump
  • keep in mind that the column of water is getting very heavy at greater depths and can be very difficult to lift

Instructions for use

Before installing:

  • before the pump is installed, the borehole should be cleaned, disinfected and protected
  • the water used for priming must be free of contamination
  • pumping sand will damage the pump and should be avoided
  • to ensure proper installation and operation of a hand pump, proceed according to the instructions provided by the manufacturer
  • for more information, refer to "Community Water Supply: The Handpump Option", UNDP & World Bank
  • see also the preliminary remarks section

Maintenance:

Maintenance is key: the need to arrange maintenance and a supply of spare parts must be taken into account from the beginning.

  • monthly and tri-monthly checks combined with yearly replacements significantly extend the life of the pump
  • theoretical lifespans of parts:
    • chain: 4 years
    • valve: 4 years
    • piston seals: 5 years
    • handle bearings: 5 years
    • pump rod: 10 years
    • riser pipes: 2 years
  • trained mechanic(s) are needed for repair and maintenance
  • a lifting tackle and a toolkit is needed for maintenance and repair
  • it is essential to train pump mechanics and provide them with suitable tools

Main criteria to choose hand pumps:

  • availability of pumps and spare parts; try to use models available in the region
  • pump's type of use, i.e. use in family, small community, village, clinic, ...
  • the depth of the well or borehole (an increasing length of the water column requires more effort to draw water as water is heavy)
  • delivery head
  • desired discharge rate
  • quality of water (turbidity, corrosive matter...)
  • price range of pump and spare parts
  • ease of maintenance routine (are any special tools required, access to maintenance, e.g. replacing seals)
  • ask your technical referent if you have any doubt in choosing and/or operating hand pumps
