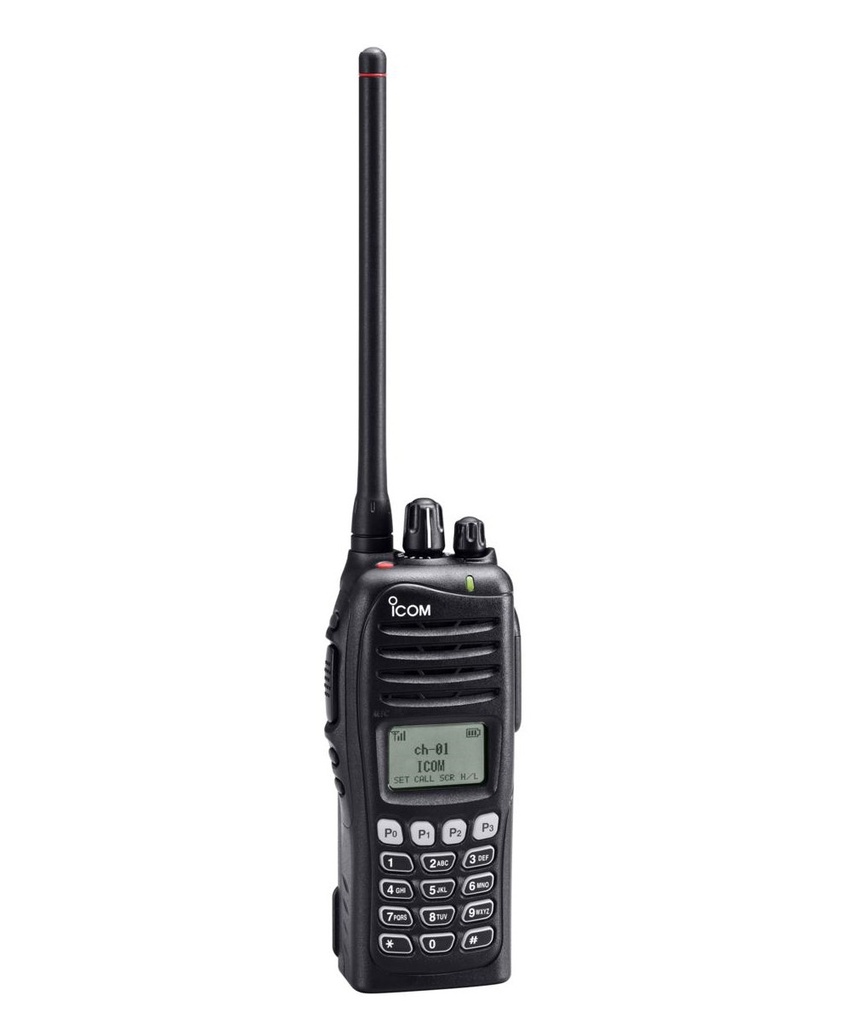

VHF TRANSCEIVER (Icom IC-F3262DT) + accessories

Definition

Portable wide-band VHF radio, programmable, intended for short-distance voice communications. The Icom IC-F3262DT handheld is a radio series that combines a rugged, waterproof and dustproof construction.

Specifications

IP67 waterproof and dust-tight protection when used with the BP232WP battery.

IC-F3262DT/DS

Frequency coverage

136–174 MHz

Number of channels

512 channels/128 zones

Channel spacing

25/20/12.5/6.25kHz

Type of emission

16K0F3E/14K0F3E/8K50F3E/4K00F1E/F1D

Current drain
(approx.)

Tx High (at 5W)

1.7A

Rx

Rated output

550mA

Standby

160mA

Dimensions (W×H×D)
(projections not included)

53.5×142.7×39.5 mm
(with BP-232WP)

Weight (approx.)

410g (with BP-232WP, MB-94R & FA-SC55V)

Transport Dangerous Goods

WARNING:

For air transportation this item is regulated, as it is classified as hazardous good by IATA:

  • UN3481 Lithium ion batteries contained in equipment
  • Class: 9
  • Packing Instructions: 967 Section II
  • The label must include the UN code of the battery + an emergency number to contact in case of an incident
  • Limit per package:
    • Pax A/C (Passengers & Cargo Aircraft) = 5 kg
    • CAO (Cargo Aircraft Only) = 5 kg

For maritime transport: not restricted as per special provision IMDG 188.


Supplied with the Article

1 PCE. (ICOM HANDSET IC-F3262 VHF INCL: ANTENNA / BATTERY BP-232WP LI-ION / BELT CLIP MB-94)

Instructions for use

  • Radios are preset to standard frequencies for immediate use.
  • Always inquire about local authorizations to be obtained.
    • Consult your local regulations and license for frequency restrictions
  • Never carry a handset by its antenna, as it is very fragile.
  • NEVER transmit without an antenna.
  • The handset range depends on environmental conditions: the maximum is 8 km.
