ADAPTOR COUPLING symmetric half-coupling / Storz, 2"-25mm D

NST CWATCADAH225S

Valid Article

Former Code(s): CWATCADAG12SH
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist

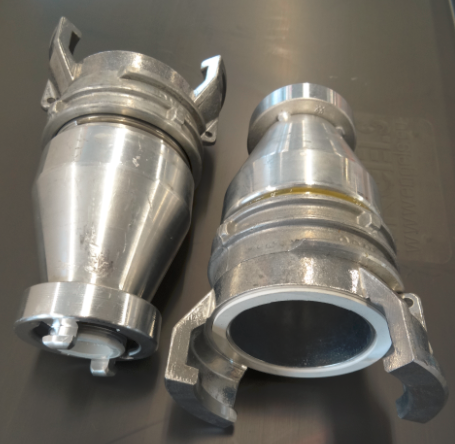

ADAPTOR COUPLING symmetric half-coupling / Storz, 2"-DN25mm

Form

Adapter coupling, with a Storz D (ND25) coupling on one end and a 2" Guillemin with lock coupling on the other end.

Per piece

The Storz fitting is a symmetrical fitting (no difference between a male fitting and a female fitting).

This coupling has a gasket for sealing, and two claws which each fit into the grooves of the other fitting and allow the two fittings to be locked.

A half-turn rotation will tighten the fittings. To separate (disconnect) the two Storz fittings, make a half turn in the opposite direction. These operations must be carried out using the Storz key specially designed for this purpose.

Fit

Connects to a 2" symmetrical half coupling on one end and Storz D (ND25) on the other.

Storz D: Distance between claw: 31 mm; for pipe Inner Diameter 25mm.

Function

Used to connect two different fittings a Guillemin 2" and a Storz D.
