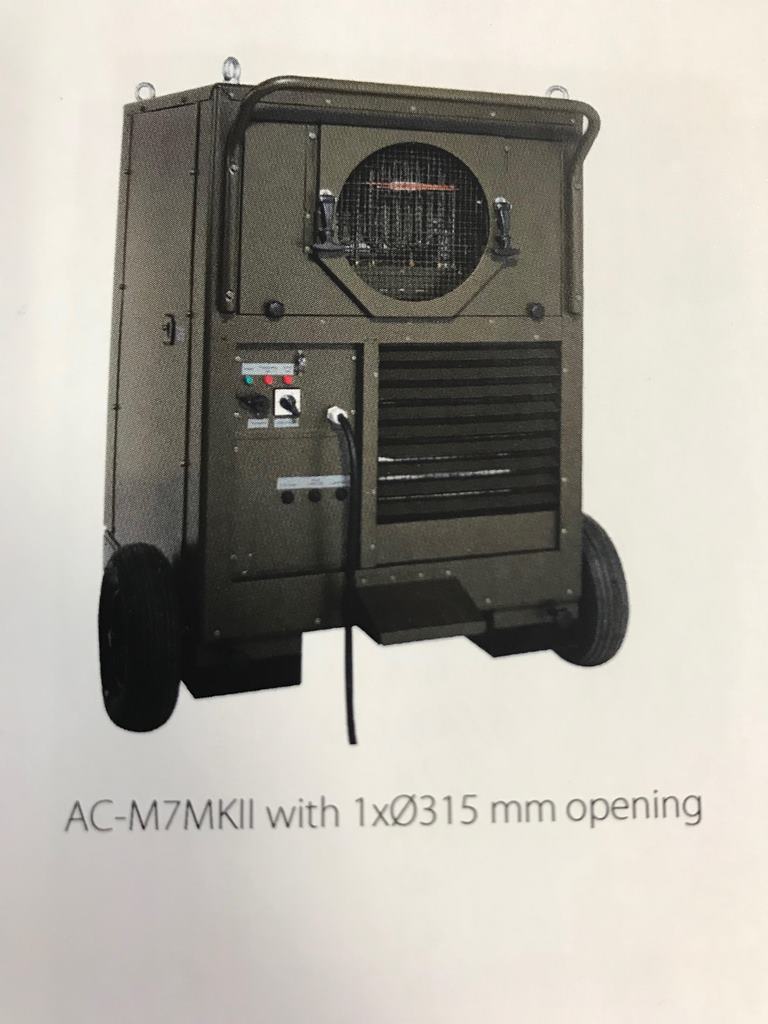

AIR COND. (Dantherm AC-M7MKII) cool/heat 7.6/7,2kW, 1xØ315mm

Form

Portable air conditioning unit.

Technical specifications:

  • airflow: 2500 m3/h
  • refrigerant: R134a
  • protection class: IPX4
  • nominal cooling capacity: 7.6 kW
  • nominal heating capacity: 7.2 kW
  • power supply: 400V / 3ph / 50 Hz
  • max. power consumption cooling/heating: 3,700/7,700 W
  • max. running current, cooling/heating: 7.2/13 A
  • hose connection: 1 x Ø 315 mm
  • color: white
  • size (HxLxW): 1150 x 796 x 756 mm
  • weight: 190 kg

Per piece.

Fit

The unit has 1 x Ø315 mm air supply outlet and 1 x Ø315 mm air return inlet.Therefore the ducting accessories must include:

- 2 x insulated flexible duct (1 for supply and 1 for return air): CCLIAIRCA3DI

- 1 x non-insulated duct: CCLIAIRCA3DN

- 1 x perforated diffuser duct: CCLIAIRCA3UN

- 1 x thermostat: CCLIAIRCAMTR


Function

This air conditioning unit is meant to be used to cool and heat tents.

With the thermostat, the temperature regulation will be automatic according to the set temperature.

It must be placed outside the tents and will recirculate and cool the air inside the tents through supply and return air ducts
