ADAPTER COUPLING compr/threaded, PP, Ø 32mm-1", male, NP16
NST
CWATCPCOA32IM
Valid Article
Account code:
61010
HS Code:
391740
Last Updated on:
11/12/2024, 19:32:58
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

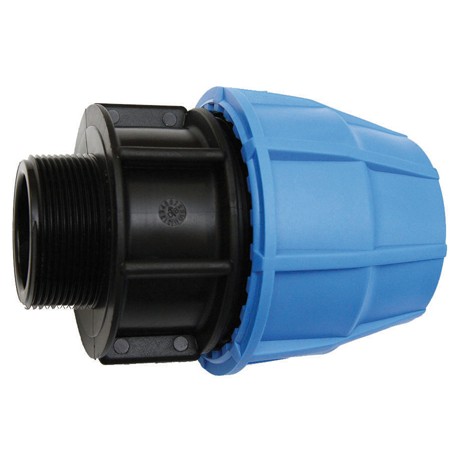

ADAPTER COUPLING compr/threaded, PP, Ø 32mm-1", male, NP16
Form
Straight PP (polypropylene) reducer coupling, with a compression coupling diameter 32mm on one end and a threaded male coupling 1" on the other. Maximum nominal pressure NP16 resisting up to 16 bar.
Per piece.
Fit
To be connected to a PE hose with an external diameter of 32mm on one end and a 1" threaded female coupling on the other side.
To ensure a leakage-free compression, the coupling and pipe should come from the same manufacturer. The gasket/seal must be present and free of debris. The compression coupling can be fasten by hand or using a claw wrench.
On the male thread use threading fibres or teflon tape is required.
Function
Used to connect a 32mm PE hose to a 1" female threaded coupling.
