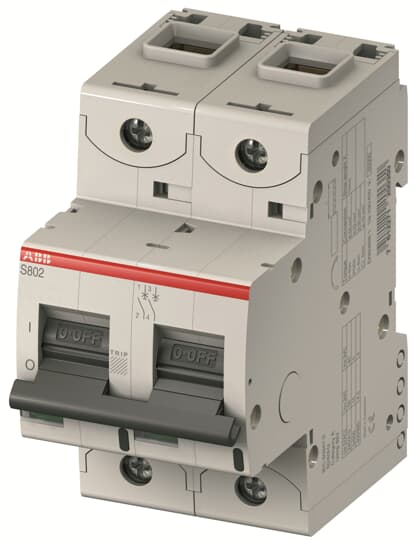

MCB (A9N18414) B100 25kA, 2P
NST
PELEMCBS2BH0E
Valid Article
Account code:
61220
HS Code:
853690
Last Updated on:
09/05/2025, 22:03:23
Former
Code(s):
PELEMMCB2BH0E PELEMCB02BH0E
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
MCB (A9N18414) B100 25kA, 2P
Form
- Circuit breaker 2 pole, 100 amps, B Curve, 25 kA Icu conforming to EN/IEC 60947-2, 240 - 415 V AC 50/60 Hz. Thermal-magnetic.
- Single terminal, top or bottom rigid wire(s) 1-50 mm² max
- Single terminal, top or bottom flexible wire(s) 1-70 mm² max
- Operational temperature: -25 +60 °C
- Height: 95mm
- Width: 54mm
- Depth: 82.5mm
- Weight 0.49kg
Open article.
Fit
Compatible with main circuit and distribution boards of similar make and technical specifications.
Function
MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.
A MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
