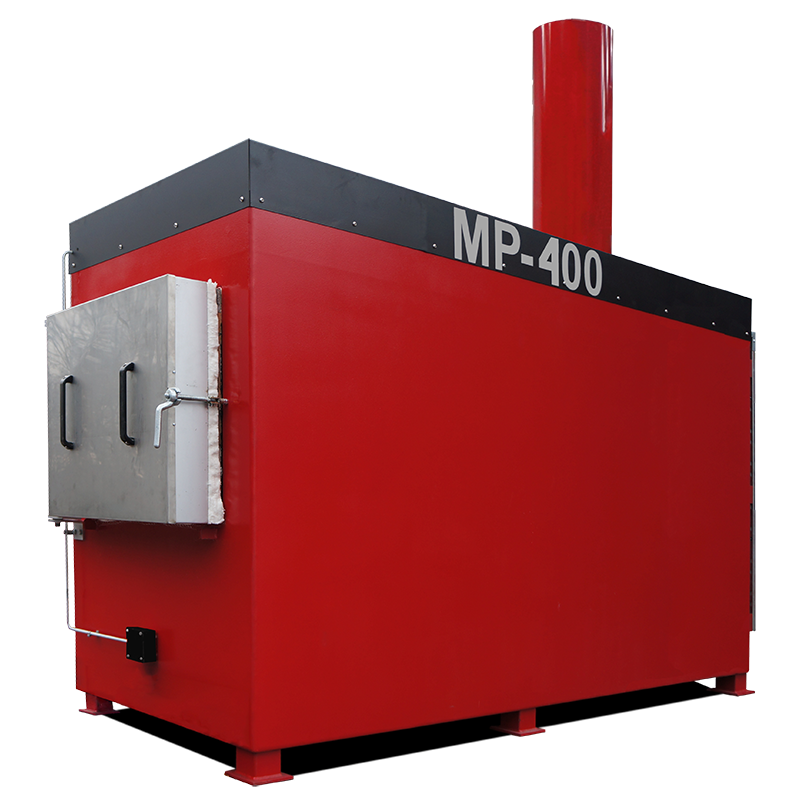

INCINERATOR HTI (Addfield MP-400) diesel, 230V

Form

Stand alone medical wast burner. Suited for medical wet waste (50-100%), blood, drips, human faeces, human organs, human tissues, human limbs, cancer treatment, pharmaceuticals, surgery waste, syringes/needles.

  • Front loading door.
  • Manually loading.
  • Load capacity (batch capacity) 400kg.
  • Burn rate in kg/hour: 50-75 kg/hour.
  • Recommended hospital size: 450 - 650 beds.
  • Standard delivered with 3660 mm of chimney, measured from the floor.
  • Easy ash removal.
  • Two chamber combustion of highly infectious and wet waste.
  • Fully insulated for increased efficiency.
  • Pre-fabricated 8 and 10 mm robust mild steel casing.
  • Lightweight insulated loading door with tight secured seal.
  • Primary and secondary chamber lining thickness at 220 mm , rated at 1750 degrees Celsius.

Primary chamber:

  • Fully insulated internal refractory lining, constructed from high grade refractory brick ensuring a self-supporting interlocked arrangement.
  • One fully interlocked, manually operated, access door.
  • One waste ignition burner, temperature controlled on-off, complete with internal air fans.
  • One hot hearth combustion burner, temperature controlled on-off, complete with internal air fans.
  • Secondary combustion burner air fans with automatically controlled distribution to their designated area.
  • Two temperature sensor mounting points.

Secondary chamber:

  • Fully insulated internal refractory lining, constructed from high grade refractory brick and low thermal mass insulation.
  • One secondary chamber burnout burner, temperature controlled on-off, complete with internal air fans.
  • Integrated combustion burner air fans with automatically controlled distribution to their designated area.
  • One temperature sensor mounting point at the reaches the necessary 850°C/1100°C minimum.

Combustion System

The burner system consists of fully automatic box burners, these burners are delivered with the following characteristics:

  • Anti-flame controls.
  • Adjustable flame modes.
  • Integrated fuel pump.
  • Solenoid.
  • Continuous air fan.
  • Fuel sensors.

Fit

To be installed in medical facility around the world. Need access to fuel (Diesel) and electricity to operate this machine correctly.

For advice on medical waste management, please do refer to Public health engineering in emergencies, 2nd edition 2010, chapter 6: medical waste management

Function

Machine to incinerate waste from medical facilities with the help of burning fuel.

Waste Loading and De-ashing
The MP Series of incinerators are designed for manual loading only through the main access door due to the type of wastes they incinerate. Bio-security measures should be in place on the site of the incinerator due to the possibility of spillage and spread of disease. At the end of every incineration process ash should be discharged through the loading door onto the supplied catcher tray prior to being loaded for the next burn.
