ANTENNA NVIS, for mobile Codan 3040 tuner

Definition

NEAR VERTICAL INCIDENCE SKYWAVE (NVIS) KIT
The NVIS kit is an add-on accessory for Codan's 3040 Antenna.

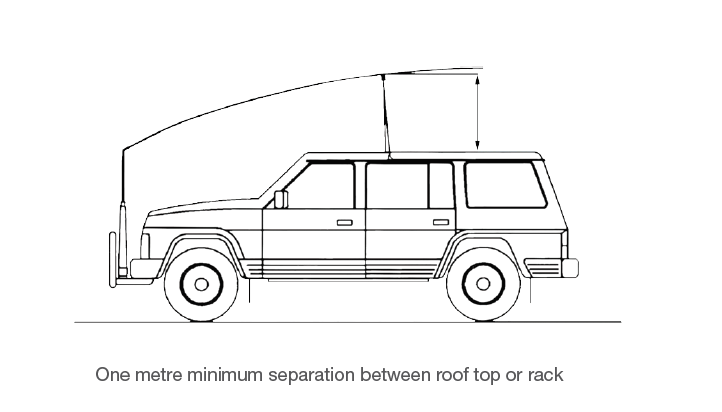

Short vertical whip antennas are poor radiators at high take-off angles. This makes short distance communications difficult,especially in hilly terrain. Making the whip longer and more horizontal improves the high take-off angle radiation efficiency.

Improves short-range communications
Transmit and receive paths over the range of 0 to 500 km will be greatly improved with the addition of the NVIS kit.

Easily attached to a variety of vehicles
The NVIS kit can be quickly and easily attached to a wide variety of vehicles. All fitting instructions are provided – no special tools are required.

Robust design
The robust design of NVIS has been proven by numerous field tests.

Note: The frequency range of the NVIS kit is 1.6 to 12 MHz.

Specifications

  • Frequency range primary whip top
  • Transmit operation: 2 to 30 MHz
  • Secondary whip top
  • Transmit operation: 2.5 to 30 MHz
  • Receive-only (Scan mode/Free Tune Receiver mode): 250 kHz to 30 MHz
  • Power rating 125 watts PEP (voice)
  • Power consumption Static: 150 mA
  • Tuning: 1 (12 V DC nominal — supplied from the transceiver)
  • Input impedance 50 ohms: VSWR typically 1.5:1
  • Temperature: –40 to +60°C
  • Tuning speed typically 2 seconds
  • Size and weight primary whip: 2.47 m; 5.8 kg
  • Colour black, green

Instructions for use

Only for specific needs, validated by HQ Radio Telecom Referent.
