LAN COMMUNICATION SET (Studer XCOM-LAN)

Form

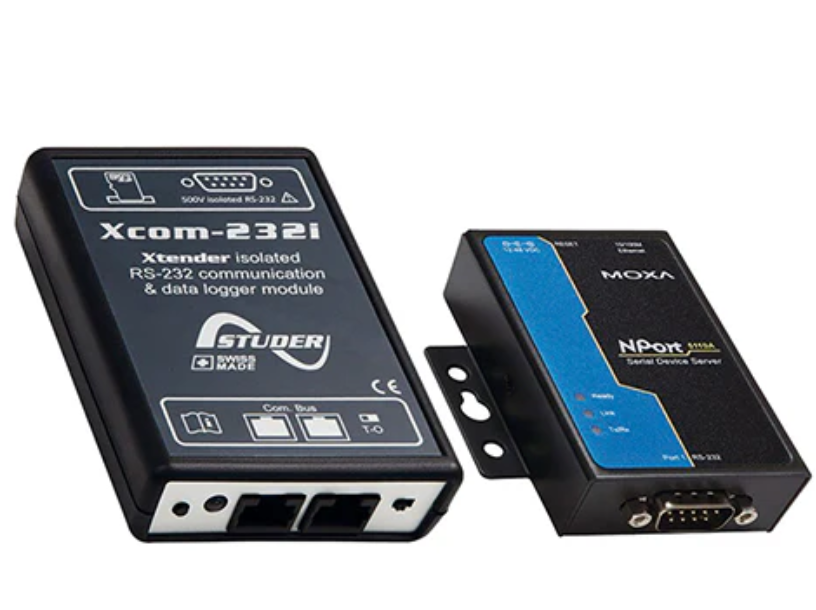

LAN communication set for Studer Xtender systems, composed of Xcom-232i and Ethernet gateway.

  • bi-coloured LED on Xcom-232i for status (operation, data logging, update, errors, communication)

  • control: push button to activate/deactivate datalogger

  • storage: MicroSD / MicroSDHC ≤ 32 GB (not compatible with MicroSDXC)

  • mounting: fixing plate, adhesive, or DIN rail with supplied clips

  • dimensions (Xcom-232i): 90 × 73 × 26 mm

  • weight: ~1.0 kg

Includes

  • 1 × Xcom-232i

  • 1 × 2 m communication cable

  • 1 × MicroSD card with adaptor

  • 1 × 0.25 m serial cable

  • 1 × Xcom-232i user manual

  • 1 × Xcom-LAN / Xcom-GSM user manual

  • 1 × Mounting plate

  • 2 × DIN-rail clips and screws

  • 1 × Ethernet gateway

  • 1 × 3 m Ethernet cable

  • 1 × Ethernet gateway quick-installation guide

Per set.

Fit

  • communication ports: RS-232 (galvanically isolated), CAN bus, Ethernet RJ45

  • Ethernet gateway: connects between Xcom-232i and LAN/router (cables supplied)

  • bus termination: switch on Xcom-232i (T = terminated at ends, O = open otherwise)

  • RS-232 parameters: 38,400 bps, 8 data bits, even parity, 1 stop bit

  • integration: links to Studer communication bus (Xtender, VarioTrack, VarioString, BSP, RCC)

  • MicroSD slot: used for firmware update, parameter configuration, backup/restore, and data logging





Function

Provides remote monitoring and control of Xtender systems via wired LAN/Internet.

  • virtual RCC-02/03 interface via Studer Xcom portal

  • full supervision of system (voltages, currents, alarms, states)

  • remote parameter configuration and firmware updates (Xcom, Xtender, BSP, VarioTrack, VarioString)

  • data logging on MicroSD (CSV files, daily with minute resolution) and remote retrieval via portal

  • email notifications for alarms and events

  • user account management and shared access for third-party support

Limitations:

  • requires LAN/Internet connection (DHCP by default, static IP configuration possible)

  • only compatible with Studer Ethernet gateway (no third-party devices)

  • indoor use only, protect from humidity, dust, shocks and condensation

  • MicroSD must be present for data logging, if full or absent, data is lost

Durability: robust design for long-term professional monitoring in industrial and energy systems.

Storing conditions: store in a dry and temperate environment, protected against shocks, ESD, moisture and dust.
