(field network kit) SURGE PROTECTOR (Ubiquiti ETH-SP-G2)
NST
ADAPSURPKU2
Valid Article
HS Code:
853690
Last Updated on:
03/11/2025, 22:33:48
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
(field network kit) SURGE PROTECTOR (Ubiquiti ETH-SP-G2)
Form

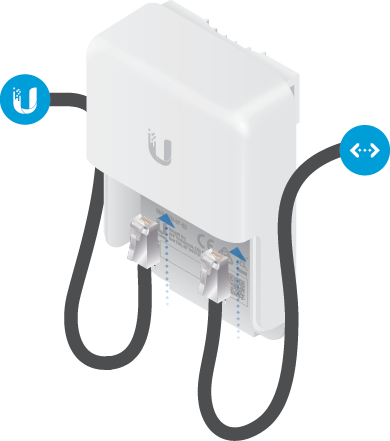

Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP protects outdoor Ethernet devices from damaging electrostatic discharge and surges.
The ETH-SP is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with up to 1 Gbps connection speeds. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
- Dimensions91 x 61 x 32.5 mm
- Weight80 g
- WeatherproofingIPX5
- Networking interface(2) RJ45 female connectors
- ESD/EMP protectionAbsorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- DC spark-over voltage90V @ 100V/s
- Max. impulse spark-over voltage700V @ 1kV/µs
- Discharge Current10kA+
- Data line protectionUp to 2.5 Gbps
- PoE supportYes
- Ambient operating temperature-30 to 65° C (-22 to 149° F)
- Ambient operating humidity10 to 90% non-condensing
Fit
Pole-mounted or wall-mounted
2 RJ45 connectors
Function
The SP-G2 protects outdoor Ethernet devices from damaging electrostatic discharge and surges.
