(compressor) AIR HOSE REEL, 20m + quick couplers M/F 1/4''
NST
PTOOCOMP0AR2
Valid Article
Last Updated on:
07/11/2024, 20:25:13
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

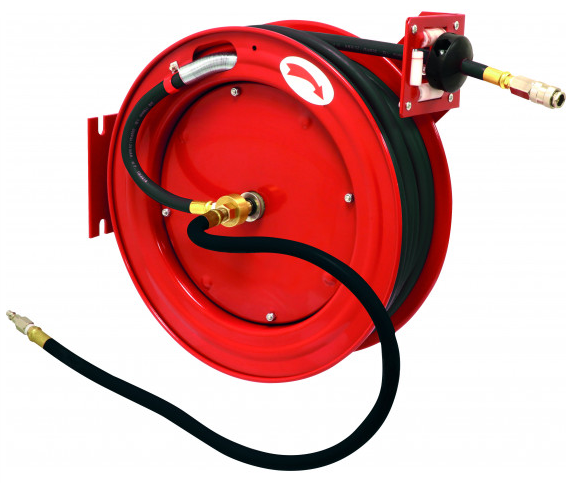

(compressor) AIR HOSE REEL, 20m + quick couplers M/F 1/4''
Form
Self-retracting hose reel for compressed air hose
- 1/4'' quick connectors
- Rubber hose Ø int. 10mm - Ø ext. 17mm
- Maximum operating pressure: 20 bars
- Maximum air flow: 707 l/min
- 4 hose guide rollers
- Hose stops
- All metal frame, epoxy paint finish
- Adjustable arm for wall, floor, or ceiling mounting
- Steel support
- Air supply connection hose length 1m, quick connectors, PTFE tape
- Section: 10x17mm
- Hose length: 20m + 1m
- Dimensions (HxWxL): 565 x 225 x 510 mm
- Weight: 20kg
Fit
To be mounted on a wall, floor or ceiling and connected to an air compressor.
Function
Allows the connection of pneumatic equipment without the hose remaining on the ground when not in use.
