MCCB moulded (C40F44V400) 1.5-10In 400A 36kA, 4P
NST
PELEMCCS4Q4H
Valid Article
HS Code:
853690
Last Updated on:
02/05/2025, 22:02:25
Former
Code(s):
PELEMCBS4Q4H
SC subscriptions: included in supply or field tools
|
|
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

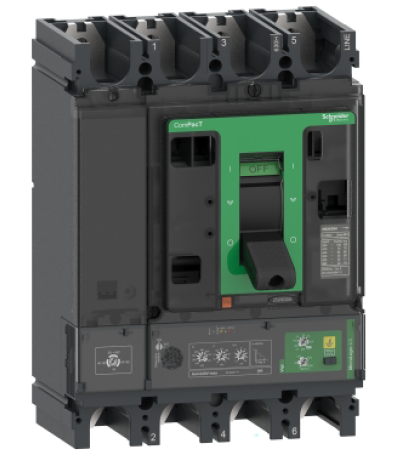

MCCB moulded (C40F44V400) 1.5-10In 400A 36kA, 4P
Form
Circuit breaker 4 pole, 400 Amps,36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2.
- Single terminal, top or bottom rigid wire(s) 1-45 mm² max
- Single terminal, top or bottom flexible wire(s) 1-45 mm² max
- Operational temperature: -25 +70 °C
- Height: 185mm
- Width: 255mm
- Depth: 110mm
- Weight 7.9kg
Per piece.
Fit
Compatible with main circuit and distribution boards of similar make and technical specifications.
Function
Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.
A circuit breaker functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
