(VRV Daikin) SERVICE CHECKER type 4
Form

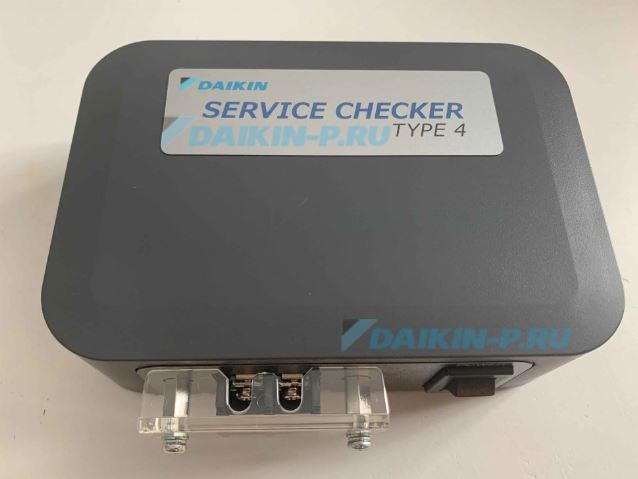

Daikin VRV service checker type 4, with a red colored main switch, a USB 2.0 port (type B) and connection port for D3-NET.
Fit

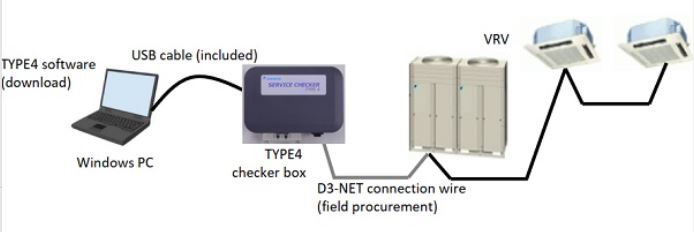

The service checker consists of two main components (TYPE4 checker box, TYPE4 checker software). It works with Windows PC which is connected to TYPE4 checker box by USB cable. It is necessary to install TYPE4 checker software to your Windows PC before using.
- TYPE4 checker components
- Windows PC
Link to instruction manual:
https://daikin-aircleaner.ru/f/as0112type4_manual_en_20191003p_denv.pdf
Function
The service checker is the tool which visualizes operation data (sensor readings, actuator status, operation mode,etc.) of Daikin VRV air conditioning units.
Purpose:
- Troubleshooting, diagnosis of VRV systems (supporting diagnosis by visualized operation data)
- Commissioning of VRV systems (checking number of connected indoor units, operation condition check)
(Note) This tool is not designed for permanent installation such as continuous monitoring or long term data logging and such ways of using are not guaranteed. If a permanent monitoring is necessary, please consider using remote monitoring service.
