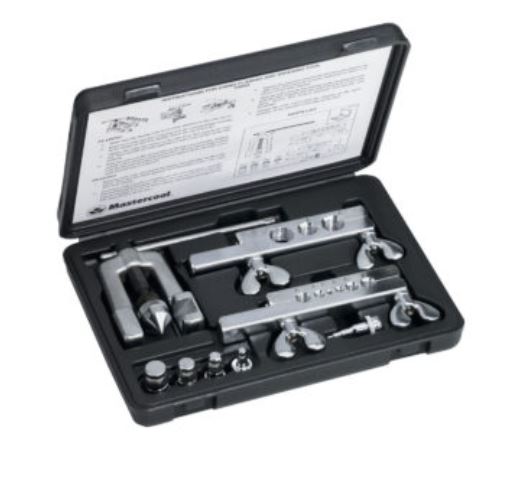

45° FLARING & SWAGING TOOL SET
Form
A forged steel slip-on yoke. Bars are chrome plated, hardened steel. Swages in close quarters where punch style cannot be used. Includes custom plastic carrying case.
The 45º flaring & swaging tool set includes:
- 2 flaring bars cover 9 sizes: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 5/8″ and 3/4″ O.D. tubing
- five swaging adapters cover 7 sizes: 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″ and 3/4″ O.D. tubing
Fit
Flaring suitable for pipes of outer diameter: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 5/8″ and 3/4″.
Swaging suitable for pipes of outer diameter: 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″ and 3/4″.
Function
Flaring and swaging are techniques used to create secure, leak-proof connections by expanding the pipe ends to fit tightly with other pipes or fittings.
