POT MAGNET, neodymium, Ø32mm, holds +- 30kg, with eyelet

Form

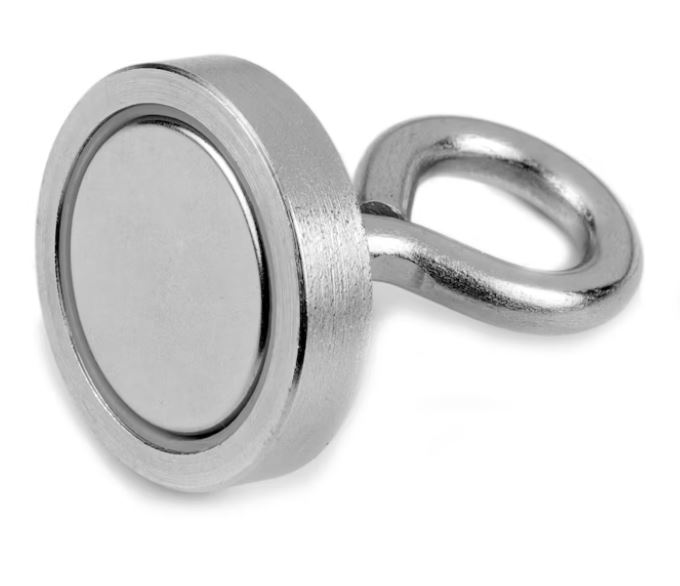

Neodymium magnet pot with an M5 thread and an eyelet screwed.

  • ​strength approx. 30 kg (approx. 294 N)
  • visible side of the magnet North pole
  • diameter D32 mm
  • neck diameter d10 mm
  • pot height H17 mm
  • total height without eyelet H 215,5 mm
  • total height with eyelet H 345 mm
  • eyelet inside diameter a 11 mm
  • thread size M5
  • weight 53 g

Per piece.


Fit

Compatible with any ferromagnetic surface.

The full adhesive force is achieved when the ferromagnetic counterpart is smooth and of sufficient thickness and when the pot magnet makes direct and full flush contact. Pot magnets already lose much of their adhesive force at a distance of only half a millimetre to the ferromagnetic surface.

Function

To be used in any ferromagnetic surface as an easy to set and remove hanger.

This magnetic pot is also used with metallic discs to fix flexible solar panels, or other light-weight items, to the walls or roofs of tents. The metallic discs are fixed to the solar panels which then are installed on top of the roof of the tent. The magnetic pot is installed at the other side of the fabric of the roof of the tent facing the metallic disc. 6 pairs of metallic discs and magnetic pots are enough to fix a 3 kg flexible solar panel to the fabric roof of a tent.
