(incinerator) SUCTION HOSE floating, 2m, F3/8", for tank
NST
CWASINCI00029
Valid Article
HS Code:
841690
Last Updated on:
17/01/2025, 22:45:41
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

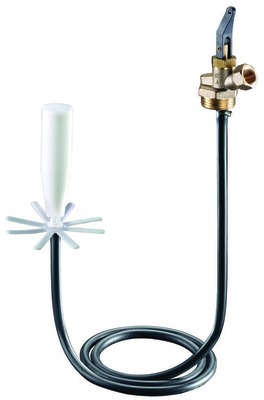

(incinerator) SUCTION HOSE floating, 2m, F3/8", for tank
Form
Flexo-Bloc with floating suction
For one pipe systems with suction pipe and float. With floating suction, the permanent heating extraction takes place approx. 4 - 6 cm below the fuel level. This means that only the cleanest heating fuel is extracted.
With ball check valve and quick shutoff.
Pipe connection: G ⅜ internal thread
Tank connection: G 1½ external thread
Dimensions:
- Length: 200 mm
- Width: 170 mm
- Height: 80 mm
- Weight: 0,54 k
See part 5 on the diagram (example of one pipe systems without return flow feed, tank storage tank above ground level)
Fit
Fuel tank height: up to 2000 mm
Function
Device designed to extract fuel from tanks efficiently and securely without causing spills or leaks.
