BLOOD BANK REFRIGERATOR (MRB3000SDD)+ AC/DC ADAPTOR, 90 bags

https://unicat.msf.org/cat/product/95390
NST ELAEBBRE31B

Valid Article

CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
Z121701 - Blood banks refrigerators
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
P
The order of this product needs to be justified and is only acceptable under certain conditions.
UN3358
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://unicat.msf.org/web/image/product.template/588033/image_1920?unique=18b8905

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

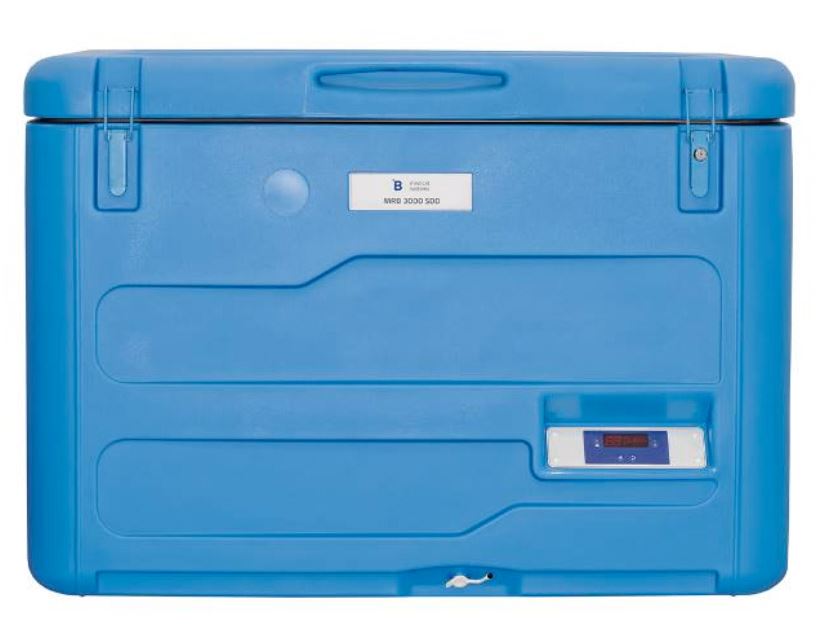

BLOOD BANK REFRIGERATOR MRB3000 SDD + AC/DC

This blood bank refrigerator is currently undergoing field testing.

Before ordering blood bank fridge, please consult your OC's laboratory and/or biomedical advisor/referent. To ensure safe blood storage, support will be provided for selecting the most suitable model of a new blood bank refrigerator and implementing the field validation procedure in all field projects.

Definition

The blood bank refrigerator MRB3000 SDD is used to store blood products at a temperature of +4°C in a temperatures range between +2°C and +6°C.

The storage capacity can go up to 90 bags of 450ml.

The ice-lining consists of icepacks filled with water in order to increase the thermal inertia.

Specifications

The refrigerator + AC/DC adaptor is compatible with voltage from 90 to 305 V

Some restricted information has been hidden. Sign in to see this information

Quality Standards Comment

Low voltage directive: 2006/95/EC
EMC Directive: 2004/108/EC

Material

  • Polyethylene outer material
  • Polyethylene inner material
  • Polyurethane foam insulation
  • Insulation thickness (mm) 100

Technical specifications

  • Gross volume : 141 l
  • Number of bags (450 ml): 90
  • Hold over time at +32°C : >72 h ; at 43°C : 39.9h
  • Set point: +4°C
  • Supply voltage: 90-305V
  • Frequency: 50-60Hz
  • Energy source: Electricity (then AC/DC converter)
  • Power: 80W
  • Energy consumption at 32°C (Kwh/24h): 0.5 kWh/24h (stablerunning), 0.8 kWh/24h (cool down)
  • Type of cooling liquid R600a (75g)
  • Ice Lining
  • Installed iceling : 6 x 3.8l and 9 x 0.6l

The cold accumulators act as a cold bank during a power cut.

Alarm signal (individually adjustable) +6°C / + 2, preset -> not changeable, according to DIN 58371H

Working conditions:

  • Altitude up to 2000 m
  • Temperature from 10°C to 43°C
  • Relative humidity max 95%
  • Mains supply voltage fluctuations up to +/- 6% of the nominal voltage
  • Ensure a good air circulation around the refrigerator.
  • Avoid direct sunlight

Dimensions

  • Outside dimensions (H x L x P) (mm) 910 x 1270 x 780
  • Inside dimensions (H x L x P) (mm) 522 x 880 x 376
  • Packaging dimensions H x L x P (mm) 1030 x 1300 x 800
  • Net weight: 131 kg
  • Shipping weight 151 kg

Transport Dangerous Goods

  • UN3358 - IATA : special provision A103 (less than 0,10 kg/unit)
  • Not dangerous goods according to IATA

Supplied with the Article

  • 5 basket for storing blood bags
  • 1 lockable lid
  • 2 spacers
  • 1 compass
  • 1 brush

Instructions for use

Read carefully the operating instructions before use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

  • Ensure that there is sufficient room around the unit for air circulation
  • Do not locate the unit below a ceiling fan or right next to air-conditioning equipment.
  • The unit must be transported in an upright position only (maximum inclination 45°).
  • To prevent problems with other electrical equipment causing this unit to malfunction, it should be connected to a separate circuit. Never connect the unit to a single socket with other electrical equipment by means of a multi-socket.
  • Secure all biomedical electrical devices in the laboratory. Contact your biomedical referent to define the best option.
  • Failing that, use a UPS double conversion for the electrical protection of the apparatus (see related articles below).
  • Do not bring more than 18 new blood bags per day into the refrigerator

Maintenance

  • Clean or disinfect the unit inside and outside before using it. Use only gentle cleaning agents. Never use aggressive or caustic cleaning agents, scouring powder, steel wool, abrasive sponges or chemical solvents (MSF Ref.: Surfanios).
  • When cleaning, make sure that no fluids of any kind run into the ventilation housing.
  • Read carefully the operator manual for more details on the cleaning and maintenance. All error codes are included in the manual

Storage

  • Store and transport the refrigerator between -30°C and +55°C
  • Ambiante humidity should be between 5 et 95%

Waste management

Before scrapping the unit, arrange for the lead accumulator to be removed and disposed of separately.

Be sure to remove the lead-acid rechargeable battery and dispose of separately.

Classification EC Regulation N° 1272/2008

  • H222 - Exrtremely flammable aerosol
  • H229 - Pressurised container: mayu burst if heated

Signal Word

Danger

H222Extremely flammable aerosol.
H229Pressurised container: May burst if heated
P410 + P412Protect from sunlight. Do no expose to temperatures exceeding 50°C/ 122°F.
P210Keep away from heat/sparks/open flames/hot surfaces. – No smoking.
P211Do not spray on an open flame or other ignition source.
P251Pressurized container: Do not pierce or burn, even after use.
P101If medical advice is needed, have product container or label at hand.
P102Keep out of reach of children
P103Read label before use.

MSF requirements

Refrigerator complying to the minimal requirements for the storage of blood products, in the MSF field conditions. Supplied with a visible and audible alarm installed.
