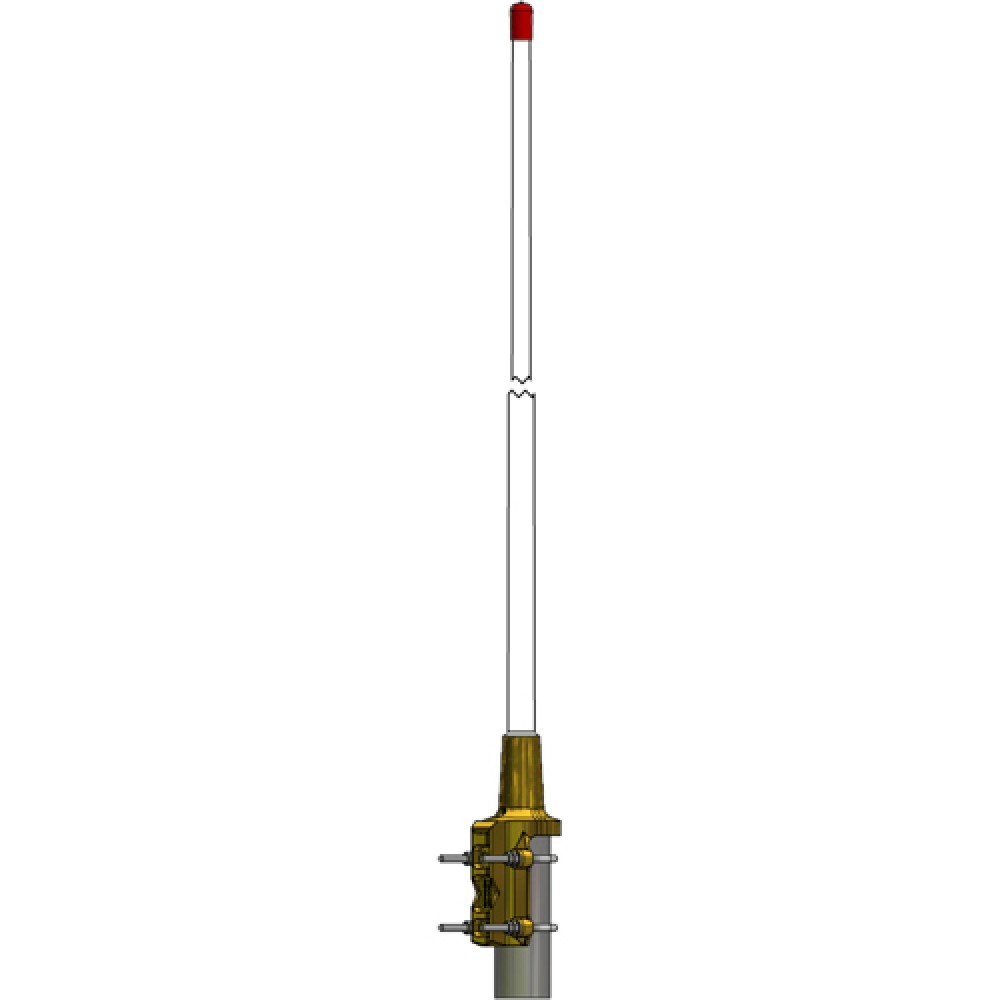

VHF ANTENNA (Procom CXL 2-3LW/l) 146-155MHz
NST
PCOMVHFAPCXA
Valid Article
Last Updated on:
11/12/2024, 20:02:25
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
VHF ANTENNA (Procom CXL 2-3LW/l) 146-155MHz
Form
It is a 3 dBd, vertically polarised, omnidirectional base station and marine antenna.
Specifications:
- Frequency: 146 - 155 MHz
- Antenna Type: Broad-banded collinear antenna
- Max. Input Power: 150 W
- Polarisation: Vertical
- 3 dB Beamwidth, E-Plane: 30 °
- 3 dB Beamwidth, H-Plane: Omnidirectional
- Impedance: 50 Ω
- Gain: 3 dBd (5.2 dBi)
- VSWR: < 1.5:1
- Bandwidth: 9 MHz
- Antistatic Protection: All metal parts DC-grounded (Connector shows a DC-short)
- Connector Torque: 0.7 - 1.1 Nm
- Connection(s): N(f)
- Materials
- Shroud : Polyurethane-coated glass fibre
- Mounting bracket : Seawater resistant aluminium, epoxy-coated
- Clamps : Stainless steel
- Colour: White (RAL 9003)
- Wind Area: 0.0651 sq. m / 0.70 sq. ft
- Wind Load: 82 N (160 km/h)
- Dia. At Top End: 15 mm / 0.59 in.
- Dia. At Bottom End: 23 mm / 0.91 in.
- Height: Approx. 2.8 m / 110.24 in.
- Weight: Approx. 1.4 kg / 3.09 lb.
- Operating temperature range: -30 °C to +70 °C
- Survival Wind Speed: 200 km/h
- Ingress Protection: IP66
Fit
Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
The cable can be led either on the outside or along the inside of the mast tube.
Function
The antenna allows transmission and reception of a base station for VHF frequencies.
