LED FIXTURE, 10-14-17-20W, 3000-4000K, 135lm/W, IP66, 600mm
NST
PELELIGLLM15X
Valid Article
HS Code:
851390
Last Updated on:
24/07/2025, 22:02:43
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

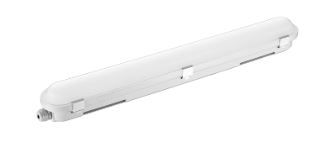

LED FIXTURE, 10-14-17-20W, 3000-4000K, 135lm/W, IP66, 600mm
Form
Complete waterproof LED luminaire (frame, board and LED tube) with power switch and adjustable temperature.
- LED tube power: dipswitch to select 10, 14, 17 and 20 W
- voltage: 220 - 240 V AC
- frequency: 50/60 Hz
- flicker-free: yes
- colour temperature: dip switch to select 3000 or 4000 K
- colour rendering index CRI: 80
- lumen: according to the selected power 1350 - 2700 lm
- efficiency: 135 lm/W
- dimensions: 600 x 96 x 83 mm
- weight: 0.7 kg
- water and dust protection: IP66
- life expectancy: 50000 hours with at least 80% of its light
Fit
To be installed on a ceiling or to a wall. The connecting electrical cable could be 2.5 mm2 maximum.
Function
The LED light tube fixture enable the installation of LED tubes on the ceiling and wall by holding the lamp securely in place. They are suitable for in-line mounting and emergency power circuits.
