TESTER electrical safety (Martindale HPAT550)

https://msf.oodin.sh/cat/product/97613
NST PELEMEASJM5

Valid Article

SC subscriptions: included in supply or field tools
OC subscriptions: included in supply or field order tools (e.g. UniField)
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://msf.oodin.sh/web/image/product.template/588446/image_1920?unique=0fca9a0

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

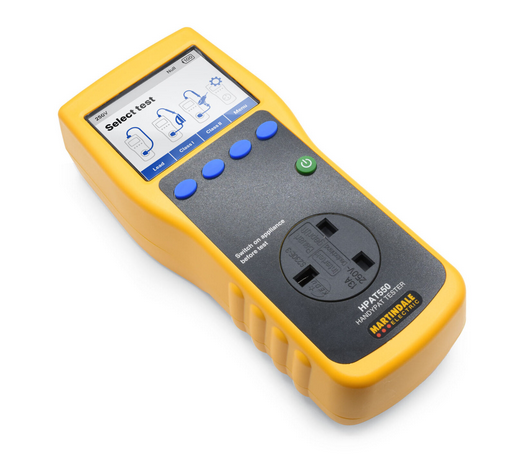

TESTER electrical safety (Martindale HPAT550)

Form

Portable handheld PAT (Portable Appliance Tester) designed for testing electrical safety of Class I and Class II appliances, providing automatic PASS / FAIL indication with measured test values on a color display.

  • material: insulated plastic housing with digital display

  • battery type: 3.7 V / 5000 mAh lithium-polymer (non-replaceable)

  • battery life: approximately 1700 complete tests per charge

  • insulation test voltage: 250 V DC or 500 V DC (user selectable)

  • earth continuity test current: 200 mA DC

  • continuity range: 0.01 Ω to 20 Ω (resolution 0.01 Ω)

  • insulation range: 0.01 MΩ to 100 MΩ

  • accuracy: ± (5 % of reading + 2 digits)

  • pass levels: Class I ≥ 1.0 MΩ / Class II ≥ 2.0 MΩ

  • operating temperature: 0 °C to 40 °C

  • ingress protection: IP20

  • overload protection: 300 V AC/DC

  • safety: complies with BS EN 61010-1

  • dimensions: 260 mm × 100 mm × 55 mm

  • mass: 600 g (with internal battery)

Includes: 1 × TL67 earth bond probe / 1 × EX322 IEC adaptor lead / 1 × TC57 carry case / 1 × USB-A to USB-C cable / 1 × TL178 null pin key / 1 × instruction manual / 1 × verification certificate

Per piece.

Fit

  • compatible with Martindale accessories TL157 (110 V adaptor), EX331 (extension lead adaptor), PL13 (plug lock out), and 3-phase adaptors TL151 to TL154

  • USB-C port for fast charging and data connection

  • test terminals protected up to 300 V AC/DC

  • suitable for safety testing of portable Class I and Class II appliances in domestic, industrial, or medical environments

  • can be used with Martindale PAT labels (LAB1, LAB2, FAIL1)





Function

Performs electrical safety tests on portable appliances, including earth continuity, insulation resistance, and power lead verification.
Displays clear PASS / FAIL results with measured values on a color screen.
Provides automatic sequential test mode for quick and reliable operation.
Ensures electrical safety compliance according to BS EN 61010-1 standards.
Useful for maintenance and inspection programs to verify the safety of electrical equipment.
