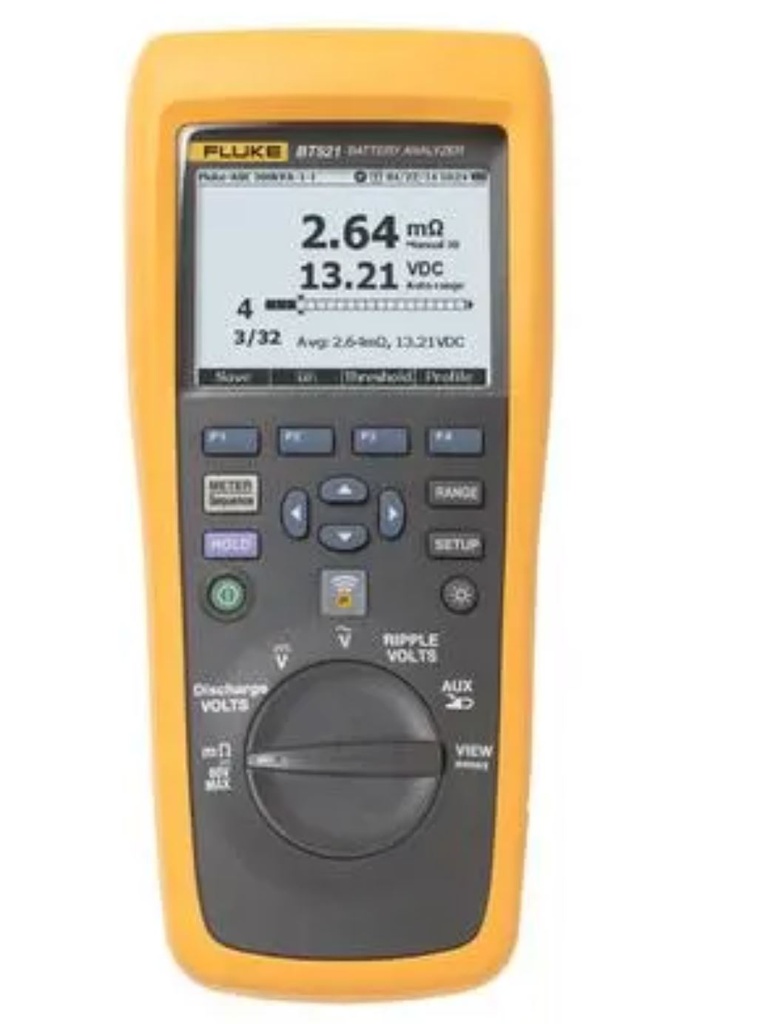

BATTERY ANALYZER (Fluke BT521)

Form

Battery analyzer designed for maintenance, troubleshooting and performance testing of stationary batteries.

  • materials: rugged handheld device with intuitive user interface and simplified workflow for guided setup and logging
  • battery: 7.4 V 3000 mAh lithium-ion, operation time > 8 hours
  • protection: IP40
  • safety rating: cat iii 600 v, 1000 v DC max
  • dimensions: 22 × 10.3 × 5.8 cm
  • weight: 850 g

Includes:

  • 1 × battery analyzer
  • 1 × 4-wire test pin (set)
  • 1 × btl10 basic test leads
  • 1 × tl175 twistguard test leads with adapter
  • 1 × btl21 intelligent test probe set with extender and temperature sensor
  • 1 × i410 AC/DC current clamp
  • 1 × bp500 lithium-ion battery
  • 1 × bc500 AC charger
  • 1 × mini-usb cable
  • 1 × shoulder strap
  • 1 × belt strap
  • 1 × magnetic hanging strap
  • 1 × flukeview battery management software
  • 1 × soft carrying case
  • 2 × spare fuses
  • 1 × battery tags set
  • 1 × zero ohm calibration resistor

Per piece.

Fit

Supports stationary battery types including lead-acid families (vrla, flooded, agm, gel), lithium-ion and NiCd.
Compatible with intercell strap resistance testing between batteries in a string.
Integrates with fluke battery management software for data storage, reporting and trend analysis.
USB mini for pc data download and reporting.
Wireless link to Fluke battery analyzer mobile app for viewing profiles and emailing csv test results.
Not compatible with Fluke connect.

Function

Battery analyzer designed for maintenance, troubleshooting and performance testing of stationary batteries and battery banks used in critical back-up applications.
Provides quick meter mode and guided sequence mode for strings with pass, warn and fail thresholds to standardize maintenance.
Records internal resistance, DC voltage, AC voltage and frequency, ripple voltage and temperature to identify deterioration and capacity loss.
Offers discharge measurement mode to log multiple voltage samples during load tests.
Autosave and autohold capture stable readings and store them for later review and report generation.
Supports current measurement up to 400 A with the i410 AC/DC clamp accessory
Ensures safe operation in environments up to cat iii 600 V with measurement capability up to 1000 V DC.

Specific MSF use : Ensures preventive maintenance of hospital and mission-critical battery banks, supports troubleshooting of backup systems, reduces risk of unexpected battery failure in field operations.
