GENERATOR, 14.5kVA 400V 50Hz, 3ph, diesel
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

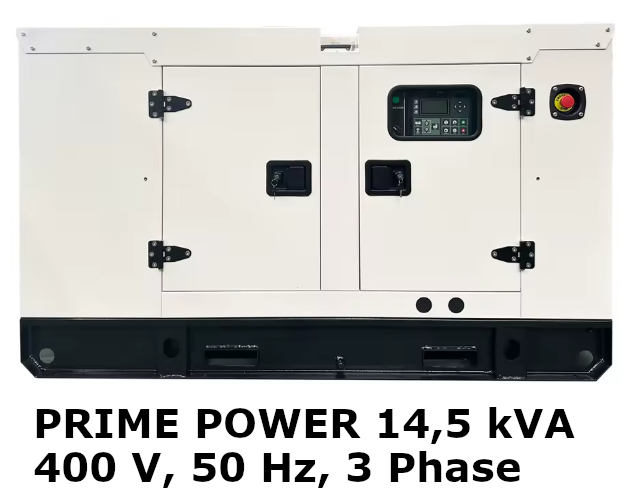

GENERATOR, 14.5kVA 400V 50Hz, 3ph, diesel
Form
Diesel powered three-phase generator delivering 400 V at 50 Hz with a prime power of 14.5 kVA and a standby rating of 16 kVA, corresponding to models marketed under various brands when equipped with a Perkins-type or equivalent 1500 RPM diesel engine.
electrical characteristics:
prime power: 14.5 kVA
standby power: 16 kVA
voltage: 400 V AC
frequency: 50 Hz
configuration: three-phase
engine speed: 1500 RPM
fuel: diesel
Per piece.
Fit
installation method: fixed placement on stable surface or mounting frame; requires proper ventilation for engine cooling, and using a water-separating fuel filter at the tank entrance is recommended to prevent contamination
electrical compatibility: connection to 400 V 50 Hz three-phase networks
Function
supply 14.5 kVA prime power and 16 kVA standby power at 400 V 50 Hz for three-phase loads
operating mode: continuous service or standby backup
suitable for emergency contexts or rapid deployment needs
regulation: maintains voltage and frequency within functional limits
operation: 1500 RPM diesel engine drives the alternator to produce AC output
monitoring: control panel manages start/stop and basic operating parameters
Transport Dangerous Goods
Generators might be considered as dangerous goods for transport:
- If a shipper or supplier provides written or electronic documentation stating that a flushing and purging procedure for flammable liquid powered engines has been followed in compliance with Special Provision A70 the generator is not subject to IATA DGR regulations
- If not complying with Special Provision A70 then the generator must be managed in compliance to IATA DGR regulations
