SHEET corrugated, fiberglass, 70x300cm, translucent
STD
CBUISHEEFT73
Valid Article
Account code:
61000
Last Updated on:
15/11/2025, 22:03:23
Former
Code(s):
CBUISHEF730
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
SHEET corrugated, fiberglass, 70x300cm, translucent
Form

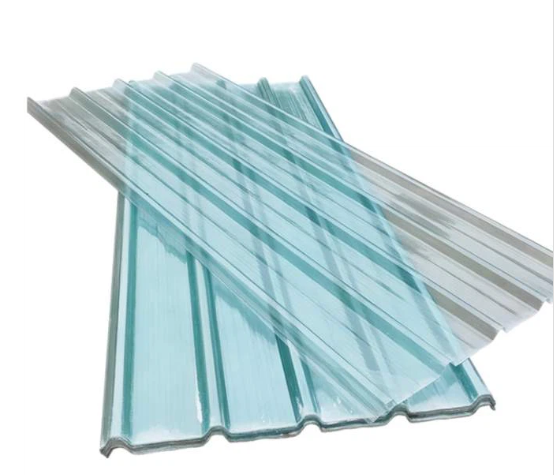

- Corrugated fiberglass sheet, semi-transparent light blue-green, measuring 70 cm × 300 cm.
- Corrugations are shallow trapezoidal, allowing easy overlapping for roofing installation.
- Sheet thickness: lightweight, rigid, yet flexible for manual handling (typically 2–5 mm).
- Edges are finished for safe handling and proper overlap; free from cracks, splinters, or warping.
- Designed to transmit diffused natural light while maintaining weather protection.
Fit
- Suitable for light roofing and wall cladding in temporary or semi-permanent shelters, sheds, and field structures.
- Can be installed using screws with washers, nails, or bolts on timber, metal, or other substructures.
- Sheets can be stacked, transported, and handled manually without special equipment.
- Dimensions and corrugation design ensure easy alignment and overlap during installation.
Function
- Provides protection against rain and wind while allowing natural light into the covered area.
- Corrugated design distributes light loads and adds structural rigidity.
- UV-resistant, corrosion-proof, and durable under field conditions.
- Lightweight and low-maintenance, supporting rapid installation and long-term use.
- Suitable for shelters, storage units, clinics, and other field infrastructure requiring translucent roofing or cladding.
