ASSEMBLY, SUCTION SIDE DOSER, 2.5-25 litres/h, 2 parts

https://unicat.msf.org/cat/product/10696
STD CWATASSYD05

Valid Article

Former Code(s): CWATADSS02- CWATA---02-1
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://www.unicat.msf.org/web/image/product.template/550087/image_1920?unique=f92beb2

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

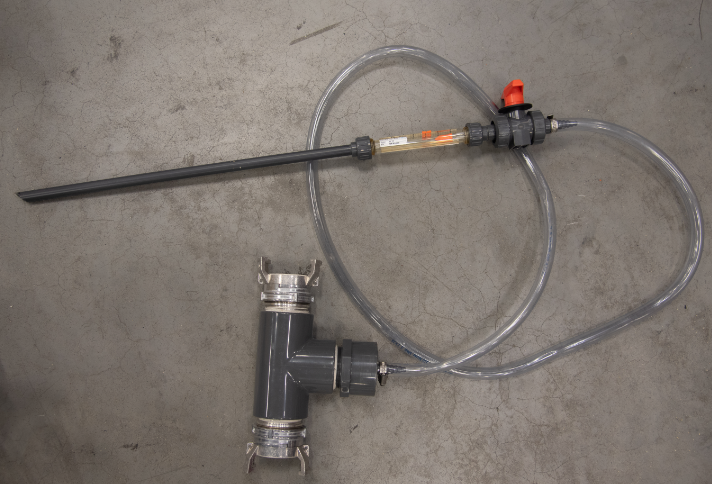

ASSEMBLY, SUCTION SIDE DOSER, 2.5-25 litres/h, 2 parts

Form

Assembly made of:

  • 1x pipe PVC 16mm length 1m
  • 2x cone connection 16mm GF721.960.305
  • 1x dosage ball valve 2-way PVC-U 323 16mm GF161.323.401
  • 1x flow meter 2.5-25 l/h tube in Polysulfon, floater in Polysulfon GF198.801.880
  • 1x 2" T piece with two 2" Guillemin type half symetrical coupling

Per assembled pieces.

Fit

To be connected in between the suction pipe and the inlet of the pump.

Part of kits:

KWATKTRE10- KIT, WATER TREATMENT UNIT, 10 m³/h

KWATMTRE11- (water treatment unit) MODULE COAGULATION, box nº1


Function

Device used during operation of the KWATKTRE10- water treatment unit to dose precise concentrations of flocculants into the water to be treated.

For more information see the "WTU 2003 Operator manual"
