ASSEMBLY, SUCTION SIDE DOSER, 2.5-25 litres/h, 2 parts

STD CWATASSYD05

Valid Article

Former Code(s): CWATADSS02- CWATA---02-1
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist

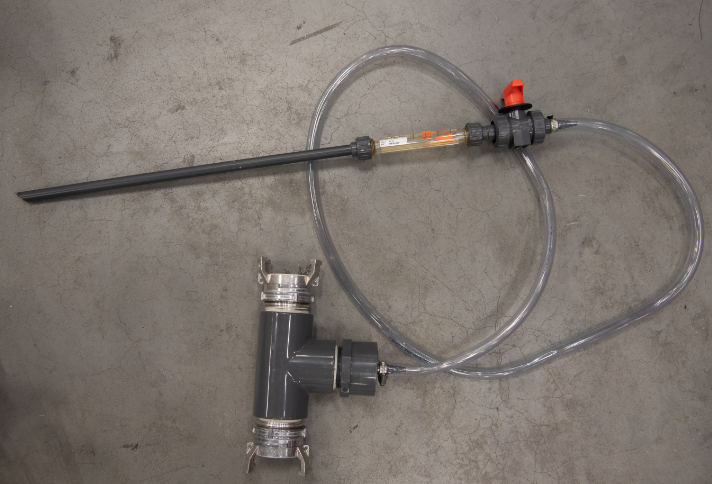

ASSEMBLY, SUCTION SIDE DOSER, 2.5-25 litres/h, 2 parts

Form

Assembly made of:

  • 1x pipe PVC 16mm length 1m
  • 2x cone connection 16mm GF721.960.305
  • 1x dosage ball valve 2-way PVC-U 323 16mm GF161.323.401
  • 1x flow meter 2.5-25 l/h tube in Polysulfon, floater in Polysulfon GF198.801.880
  • 1x 2" T piece with two 2" Guillemin type half symetrical coupling

Per assembled pieces.

Fit

To be connected in between the suction pipe and the inlet of the pump.

Part of kits:

KWATKTRE10- KIT, WATER TREATMENT UNIT, 10 m³/h

KWATMTRE11- (water treatment unit) MODULE COAGULATION, box nº1


Function

Device used during operation of the KWATKTRE10- water treatment unit to dose precise concentrations of flocculants into the water to be treated.

For more information see the "WTU 2003 Operator manual"
