SYMMETRICAL HALF-COUPLING, 2", male thread + lock
STD
CWATCSEMT2IL
Valid Article
Account code:
61010
HS Code:
391740
Last Updated on:
11/12/2024, 20:07:33
Former
Code(s):
CWATCOUH2ML
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

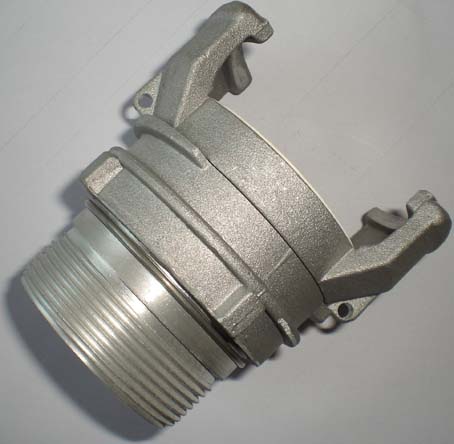

SYMMETRICAL HALF-COUPLING, 2", male thread + lock
Form
Aluminium-made coupling. On one side, it has a 2” or ND50 diameter male-thread. On the other side, it has a Guillemin-type symmetric half-coupling with lock. It contains a rubber gasket/seal. Unit of measurement: 1 piece.
Fit
On one side, it fits onto 2” or ND50 female threaded pipes or connections. On the other side, its symmetrical coupling must have a lock to ensure a correct assembly.
Function
Used to connect pipes or couplings together. To ensure a leakage-free assembly, on one side the use of threading fibres or tape (teflon) on the male coupling is required. On the other side, the gasket/seal must be present and free of debris.
