SPIRAL HOSE, 3", NP5, 8m + 2 half-couplings + lock

https://unicat.msf.org/cat/product/11084
STD CWATHOSS3085H

Valid Article

Former Code(s): CWATHOSS3SC
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

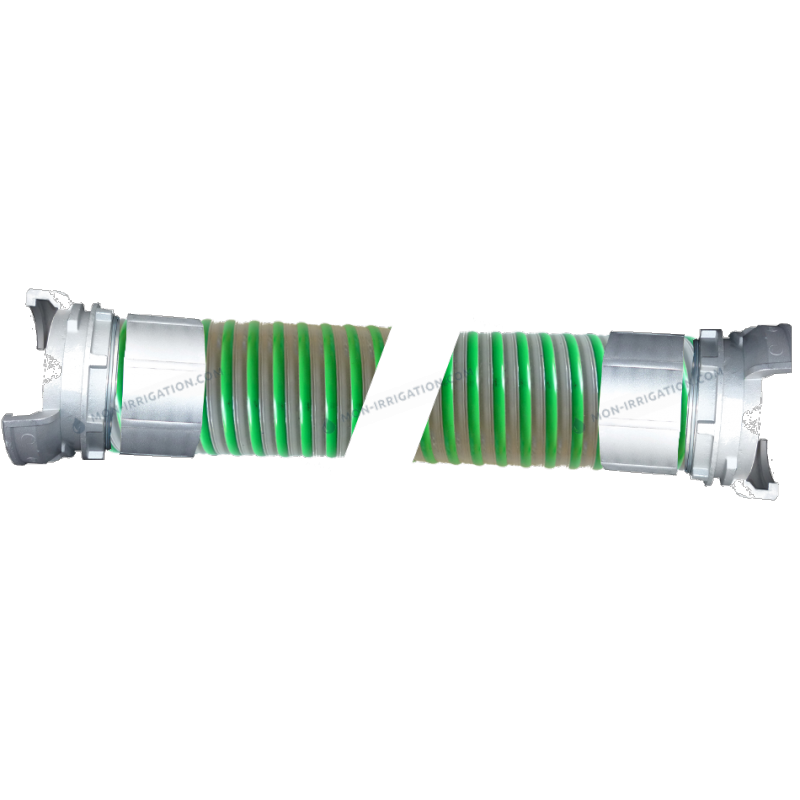

HOSE spiral, 3", NP5, 8m + set couplings

Form

Spiral hose, length 8 metre and 3" diameter, with two Guillemin-type symmetric half-couplings mounted on its ends. Should be food grade quality, but preferably drinking water quality. Maximum nominal pressure NP5 resisting up to 5 bar. Unit of measurement: 1 piece.

Fit

Fits to other 3” Guillemin-type symmetric half-couplings.

To ensure a leakage-free assembly the gasket/seal must be present and free of debris.

Function

Used for drinking water suction and delivery.
