MOTOR PUMP diesel, 60m³h/27m, 3"

https://unicat.msf.org/cat/product/11167
STD CWATPUMED60

Valid Article

Former Code(s): CWATPUMD06- CWATPUME06D CWATPUMED06 CWATPUMD061 B
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

MOTOR PUMP diesel, 60m³h/27m, 3"

Form

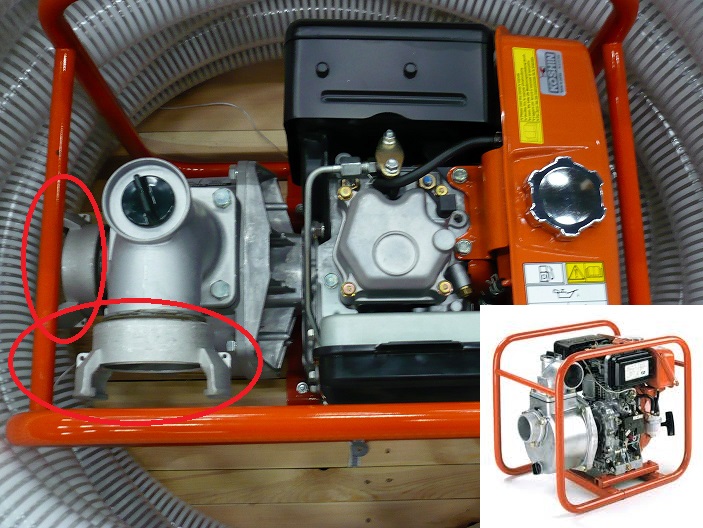

Surface centrifugal pump, delivering maximum 27 metre head or about 60 m³ per h. Powered by a diesel engine. All mounted in a metallic frame.

Specifications:

  • 60 m³/h
  • max 27m.
  • weight: 50 kg
  • fuel: diesel

Standard MSF-OCB (provided with 2 quick DSP couplings) + wooden box.

Fit

Connects with a 3" or ND80 pipe. Main component of:

KIT, MOTOR PUMP, DIESEL, 60 m³/h max, 27 m max, 3" (KWATKPUD060)

Function

  • Used to pump water from a surface reservoir source to a tank, or into a distribution system.​ Examples of surface sources the pump can be used with include drainage and irrigation ditches, ponds, basements and rivers.
  • Needs proper periodic maintenance. Is rated to pump raw water (untreated) of a relatively low turbidity.
  • Not suitable for sewage, septic tanks and wastewater in general. Pumps used for non- potable water should not be used for delivering treated potable water.
  • Recommended to order the kit with all accessories instead of the separate pump. See the kit catalogue for more information.
