MEASURING APPARATUS, paediatric, hor./vert., 130 cm, wood
STD
EANTMEAA3P-
Valid Article
Account code:
60210
HS Code:
901780
Last Updated on:
21/11/2024, 22:16:20
Former
Code(s):
-X
V030209 - Clinical altimeters
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

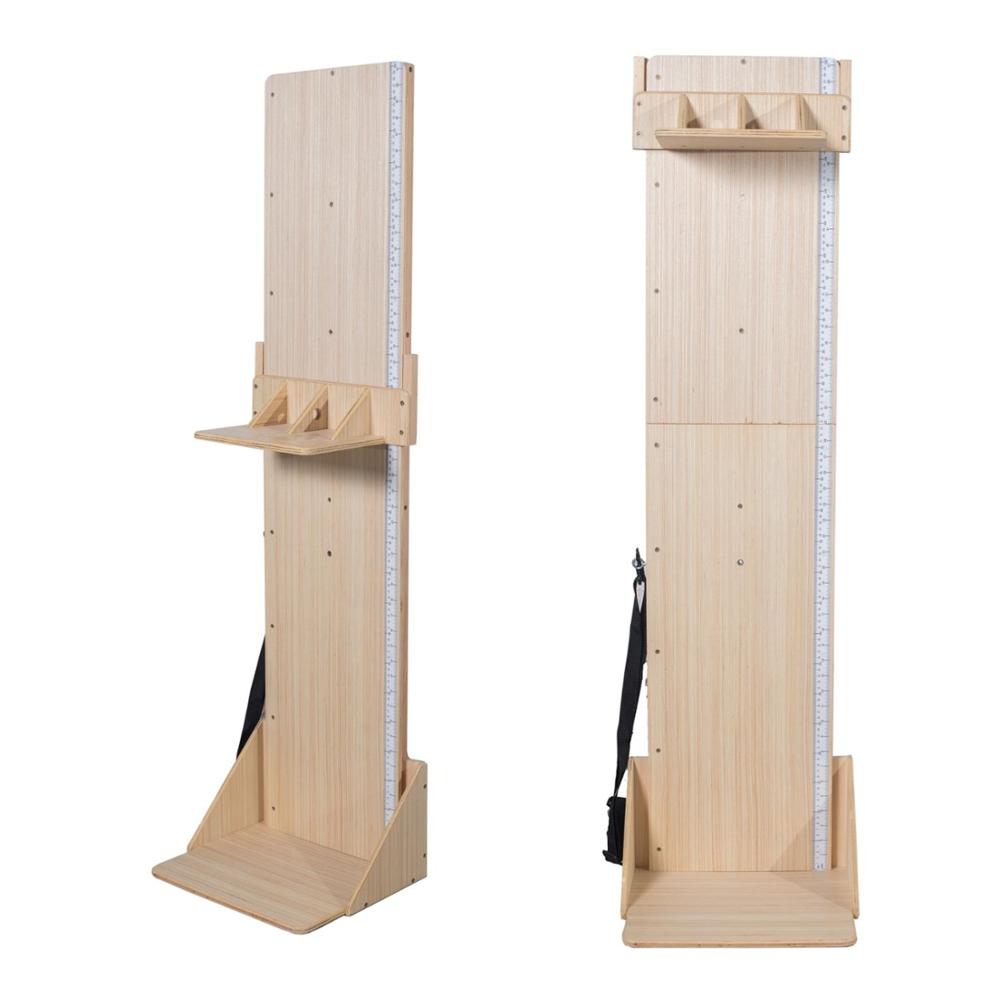

MEASURING APPARATUS paediatric, wood
Definition
Device designed to measure the height of children in a horizontal or vertical position.
Specifications
Technical specifications
- Wood, craft manufacture
- Measuring board with sliding head / foot piece, non removable (to avoid placing the slider in a wrong position)
- Self-lock slider with internal spring
- Measuring tape on one side
- Maximum height: 130 cm
- Folds to 75 cm
- Width: 25 cm
- Weight: 5.3 kg
- Graduations in mm
- Equipped with a nylon shoulder strap for transport
Supplied with the Article
- Illustrated instructions for assembly and use
- Instructions and plan for local manufacture
Instructions for use
Children under 2 years of age or under 85 cm tall will be measured lying down; children over 2 years of age or taller than 85 cm will be measured standing up.
Two people are required to measure correctly.
MSF requirements
Robust and compact. Local manufacture is possible.
