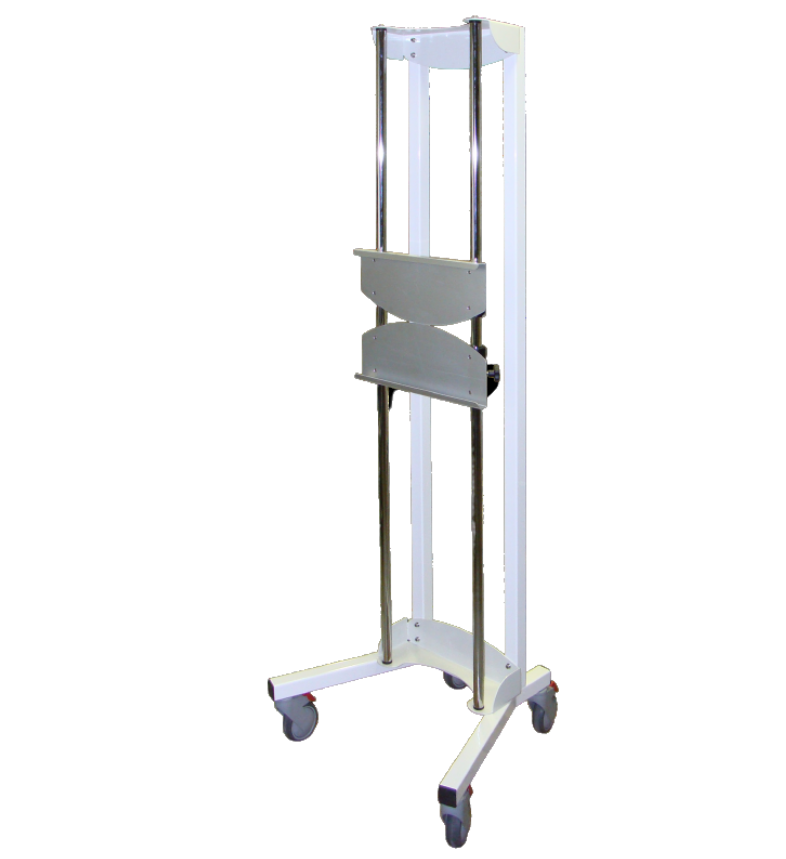

CASSETTE HOLDER for x-ray cassette, vertical, mobile

https://unicat.msf.org/cat/product/12586
STD EDIMCAHO1S-

Valid Article

Former Code(s): -X
Z11079080 - Various supporting instruments for x-ray film system - hardware accessories
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

CASSETTE HOLDER, for x-ray cassette

Definition

A vertical cassette holder can be mounted onto the wall or as a stand on the ground. It is used to support an x-ray cassette while taking upright x-rays such as the chest or abdomen. It is a necessary accessory item when using a mobile x-ray unit.

Specifications

Material

Metal, coated in enamel.

Technical specifications

Cassette holders exist in two different types:

  • with a mobile stand on 4 castors with brakes on the ground (EDIMCAHO1S-)

  • with 4 screws to be mounted to the wall (EDIMCAHO1W-)

The cassette holding channels slide freely along the vertical rails and lock firmly at the appropriate height via two spring locks.

Dimensions

Approximate dimensions:

  • wall mounted: 37 cm/14.5" width, 119 cm /47" height, 13 cm/5" depth
  • mobile stand: 38 cm/15" width, 178 cm/70" height, 58 cm/23" depth of base

Instructions for use

Stand on the floor or bolt cassette holder to a wall of the x-ray room.

Select an area where the x-ray tube will then be pointing away from where the radiographer will be.

Load x-ray cassette (and grid as required) into the holder and adjust to the height of the patient. Ensure that the patient stands against the cassette in close contact.
