X-RAY UNIT, MOBILE, ANALOGUE, SIEMENS Polymobil Plus 20kW

https://unicat.msf.org/cat/product/53894
NST EDIMXRUE8--

Discontinued Article

Former Code(s): EDIMMISC058 EDIMZFR0058 EDIMMISC034 EDIMZNL0034
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
IIb
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
PME
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

Documents

X-RAY UNIT, MOBILE, ANALOGUE, SIEMENS Polymobil Plus

Siemens stopped the supply of the Polymobil Plus. Replaced by Agfa DR100e EDIMXRUE3-- (see "replaced by" at bottom of the page).

The most appropriate X-ray equipment will depend on the specific project requirements.

Before ordering an x-ray unit, please contact the Diagnostic Imaging Working Group (diagnostic-network@msf.org) for advice, and to discuss radiation safety requirements, human resources requirements, servicing and necessary accessory equipment.

Definition

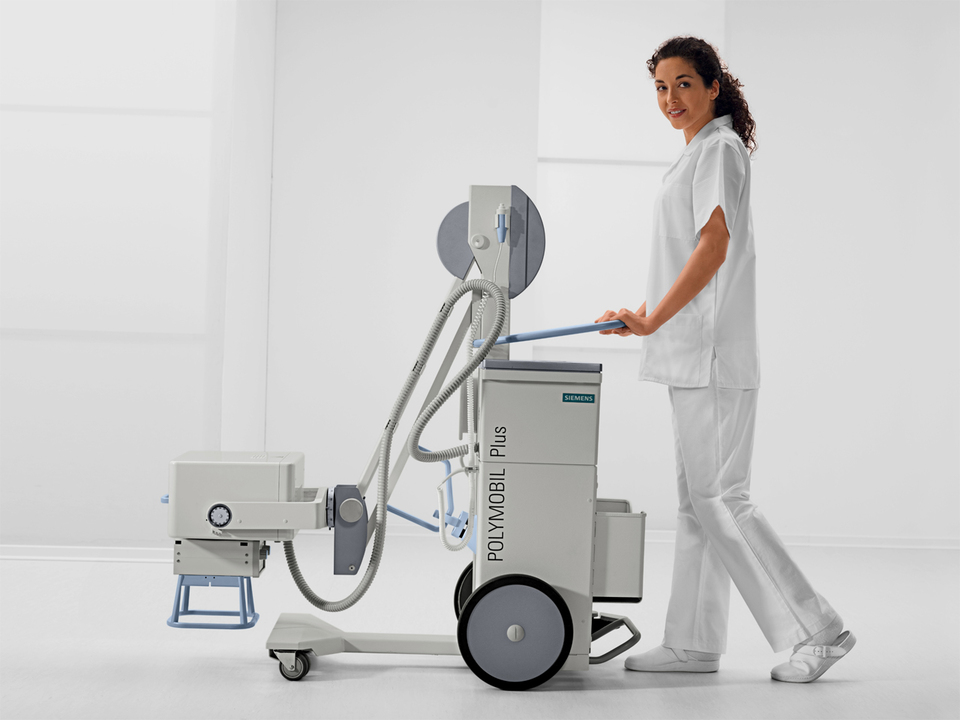

The Siemens Polymobil Plus (20kW option) is a mobile x-ray unit suitable for general hospital based x-ray applications and is used in combination with the AgfaCR10X.

It is usually not reccommended as the primary choice in a hospital based setting (see fixed options WHIS-RAD and MULTI-RAD) unless engineer installation is not possible. It is also not the preferred model to be moved around a hospital as it requires constant line power to operate. To discuss the most appropriate X-ray machine selection for the project requirements please contact the DIWG: diagnostic-network@msf.org

Specifications

Some restricted information has been hidden. Sign in to see this information

Quality standards

  • IEC 60601-1-3, 2008, edition 2.2, +A1 2013, A2 2021 Medical electrical equipment - Part 1-3: General requirements for basic safety and essential performance - Collateral Standard: Radiation protection in diagnostic X-ray equipment
  • IEC 60601-2-54, 2009, +AMD1: 2015+AMD2: 201 Particular requirements for the basic safety and essential performance of X-ray equipment for radiography and radioscopy

Technical specifications

Power connection

  • Grounded wall outlet. Length of cord 5.5 m

Mains voltage

  • 100 V ± 10 %, 50/60 Hz
  • 230 V ± 10 %, 50/60 Hz

Output

  • 20 kW
  • 125 kV (max.), 300 mA (max.)

Exposure time

  • 4 ms (min) - 6 s (max)

Weight

  • Approx.171 kg/380 lbs

Dimensions

1305 (L) x 631 (W) x 1325 (H) mm

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Must be used in a dust free environment.

Operational environment:

  • Permissible ambient temperature +10°C to + 40°C
  • Permissible relative humidity 10 % to 100 %

It is mandatory to protect the device with a double conversion UPS (see related articles below).

Maintenance

There are specific manufacturer and MSF maintenance tasks that MUST be followed. Manuals, schedules and MSF SOP documents are available on the MSF X-ray SharePoint page.

Any questions regarding purchase or maintenance may be sent to the Diagnostic Imaging Working Group (diagnostic-network@msf.org).

Storage

For transport/storage:

  • Permissible ambient temperature -20°C to + 55°C
  • Permissible relative humidity 10 % to 100 %
