VIEW BOX, 1 panel, horizontal, 220 Volts

https://unicat.msf.org/cat/product/12652
STD EDIMVIBE1--

Valid Article

Former Code(s): EDIMVIBO1-- EDIMNEGA1--
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
Z110702 - Diaphanoscope
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

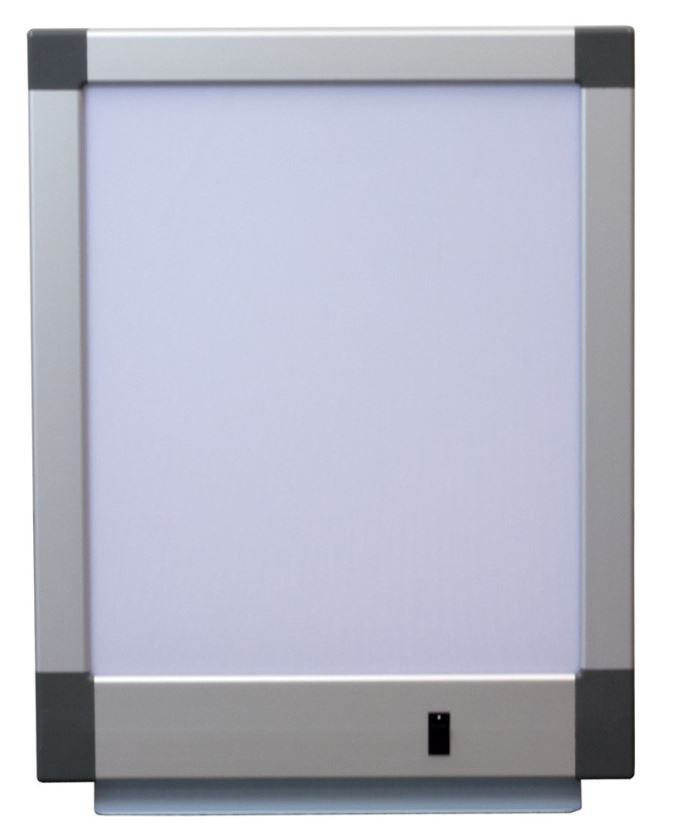

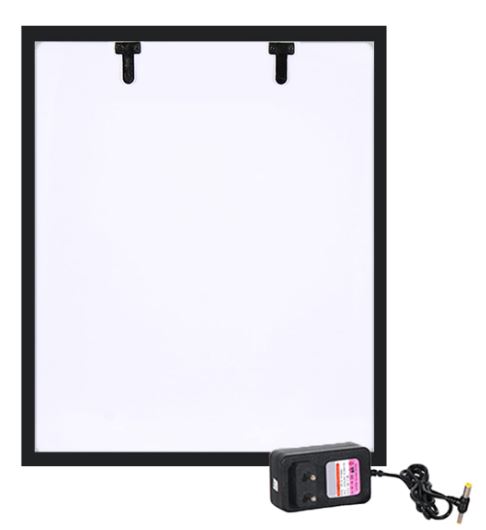

VIEW BOX, 1 panel

Definition

Luminous screen for viewing x-ray photographs by transparency.

Synonym

x-ray viewer, light box, illuminator, negatoscope

Specifications

Technical specifications

  • Case: white enamelled steel
  • Light source: fluorescent tube, "daylight" type
    • colour temperature: 6500° Kelvin
    • uniform light distribution
    • 2 x 15 W tubes
  • Translucent front panel
  • Film held with roller grip
  • Lateral switch
  • Power supply: 220V / 50Hz

Dimensions

  • (L x H x D): 39 x 47 x 13 cm
  • weight: +/- 5 kg

Instructions for use

Maintenance

Regular cleaning.

Replace the fluorescent tubes when damaged.

Caution, there are specific tubes for each model of negatoscope. Starters need to be replaced together with the tubes.
