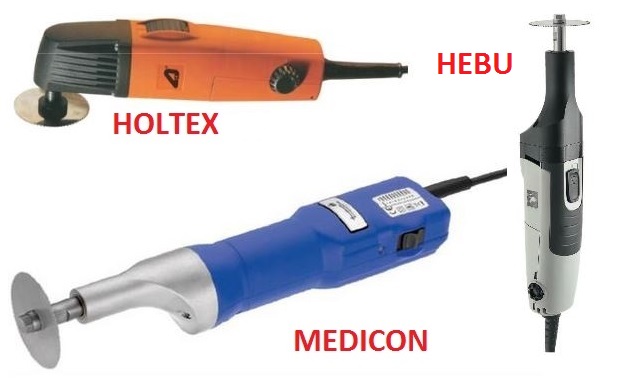

OSCILLATING SAW, for all casting tape, electrical 230V/50Hz

STD EEMDSAWE2--

Valid Article

Former Code(s): EHOESAWO2E-
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
Z12139005 - Plaster cast saws
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist



SAW, OSCILLATING

Definition

A hand-held, mains electricity (AC-powered) device designed for cutting the plaster or synthetic material used to form casts during the removal process. The proximal end is usually cylindrical, forming the handle of the device, whilst the distal end terminates in a rounded, half moon-like, or circular blade capable of cutting the material used to form casts. The cutting capability of the blade is provided by an electric motor in the handle which vibrates or rotates the blade. Cutting is effected by vibration or rotation rather than sawing.

Synonym

oscillating cast cutter

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • 12 000 to 21 000 oscillations per minute
  • Electronic dimmer allowing to adjust the frequency of oscillation
  • 5 m power cable
  • Power supply: 230 V/50 Hz
  • Double insulation

Supplied with the Article

  • 1 blade, Ø 65 mm, for natural plaster (POP)
  • 3 blades, Ø 65 mm, for resin cast (also suitable for natural plaster)
  • 1 wrench to change blades
  • 1 set of spare carbon brushes
  • User manual

Instructions for use

Read the instructions manual carefully.

Precautions for Use

Check the saw is unplugged before handling or changing the blade.

If the voltage supplied by the mains network is about 110V/60Hz, it is necessary to order an autotransformer (see related articles below).

Maintenance

  • Check the power cable for wear and cracks regularly
  • Clean the vent holes regularly
