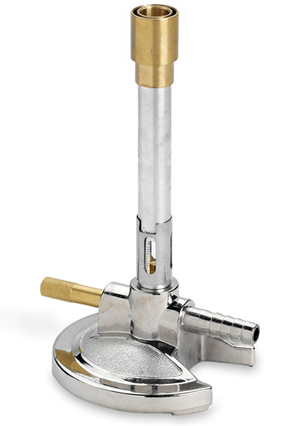

BURNER, BUNSEN, butane/propane, Ø 13 mm, pilot light
STD
ELABBUNB1--
Valid Article
Account code:
60200
HS Code:
841990
Last Updated on:
21/11/2024, 22:19:05
Former
Code(s):
ELAEBUNB001
W02079006 - Bunsen burners
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
BUNSEN BURNER
Definition
Metal device with weighted base, connector for a gas line and a barrel that produces a single open gas flame which is used for heating or disinfection.
Specifications
Technical specifications
- For butane/propane gas
- Gas regulation with tap (for rapid gas supply interruption)
- Pilot light for automatic switching on
- Rubber connection with gas source
- Gas flow: 144 l/h
Dimensions
H x Ø: 165 mm x 13 mm
To be Ordered Separately
- Tripod stand
- Net for tripod
Instructions for use
Precautions for Use
Watch out for gas spillage. If it is used in the BSC, always check that the bunsen is off before closing the hood.
Ensure that the gas tubing is appropriate for gas usage. Check regularly the status of the tubing and, if available, expiry date on it.
MSF requirements
For rapid sterilization procedures and slide fixation and to ensure a sterile environment while preparing culture media.
Pilot light is compulsory when the bunsen burner is used discontinuously.
Reserved for microbiology programmes (TB culture and bacteriology).
